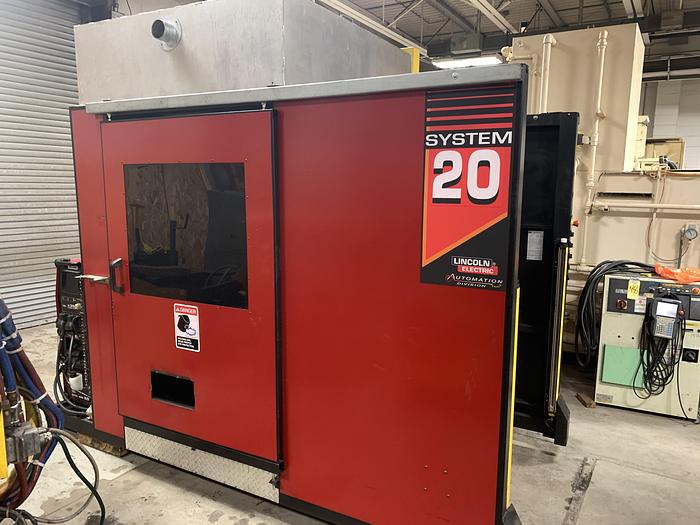

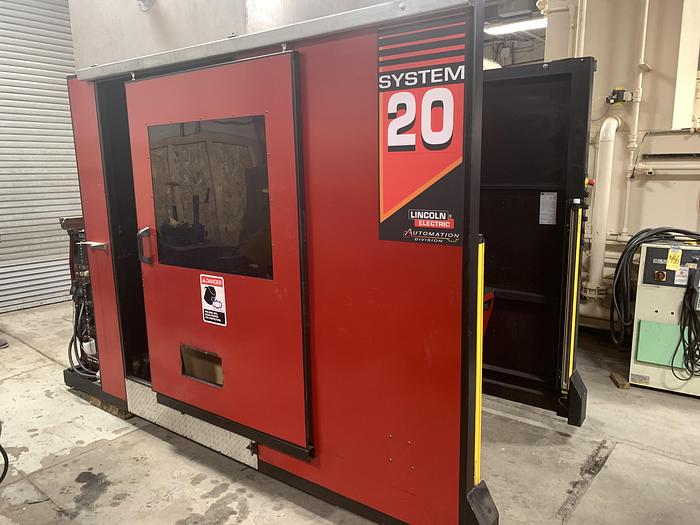

LINCOLN ELECTRIC SYSTEM 20 MIG WELDING CELL WITH FANUC ARCMATE 100IC ROBOT AND R30iB CONTROLLER

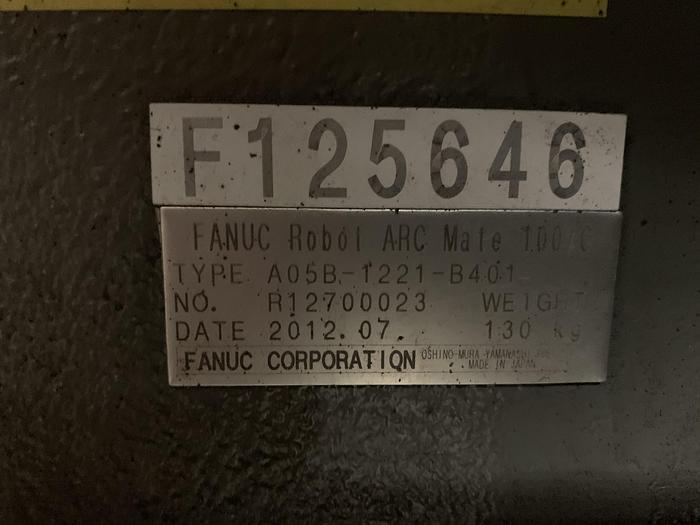

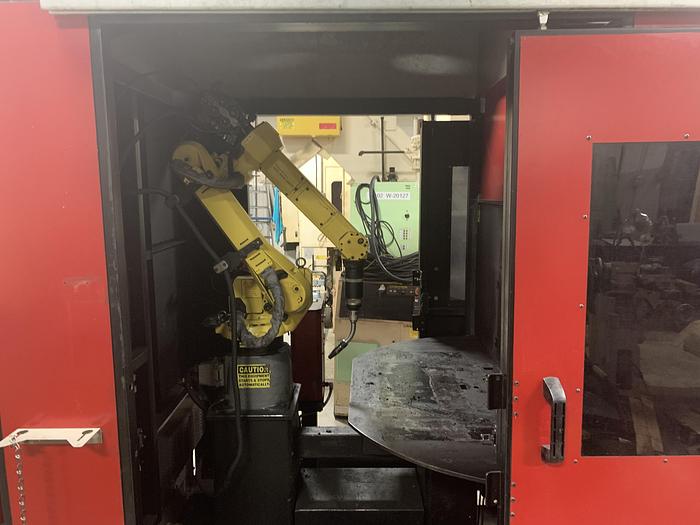

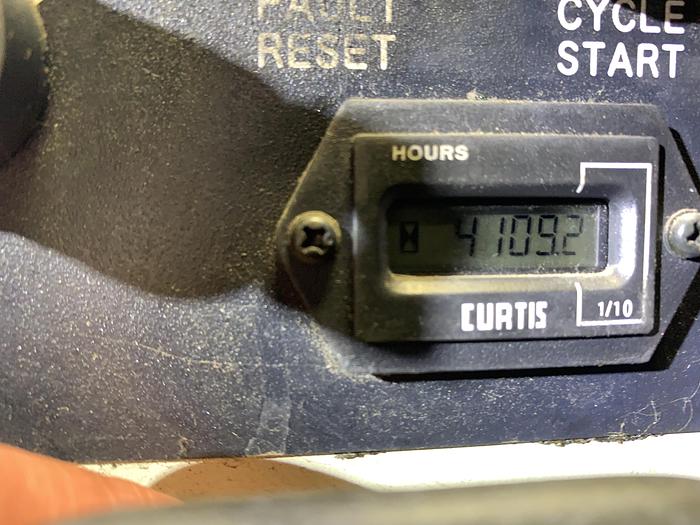

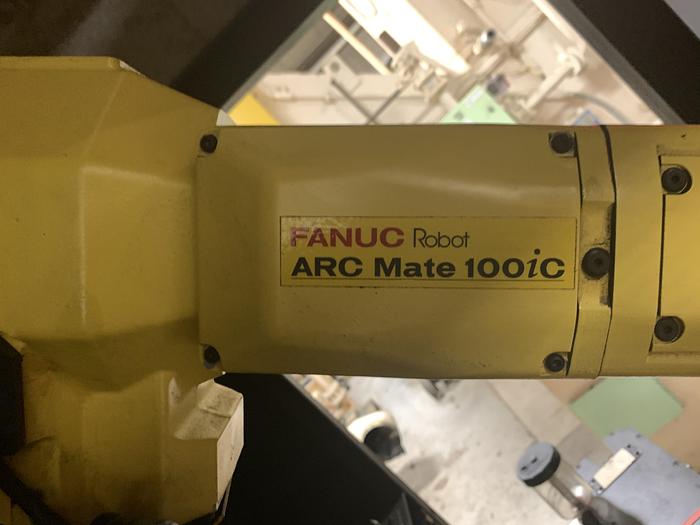

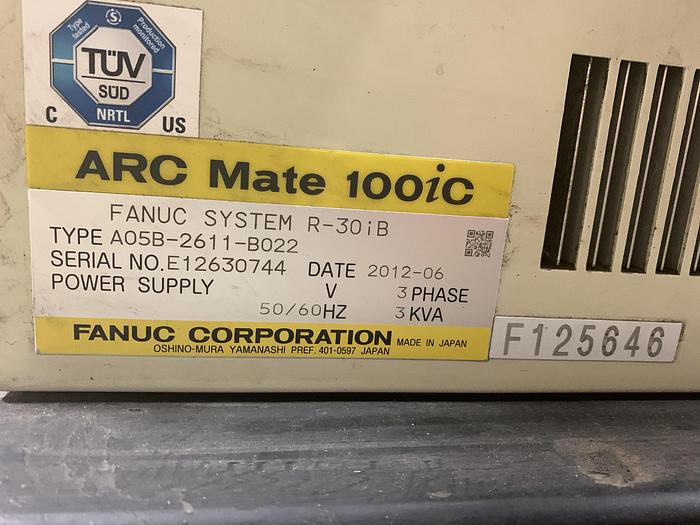

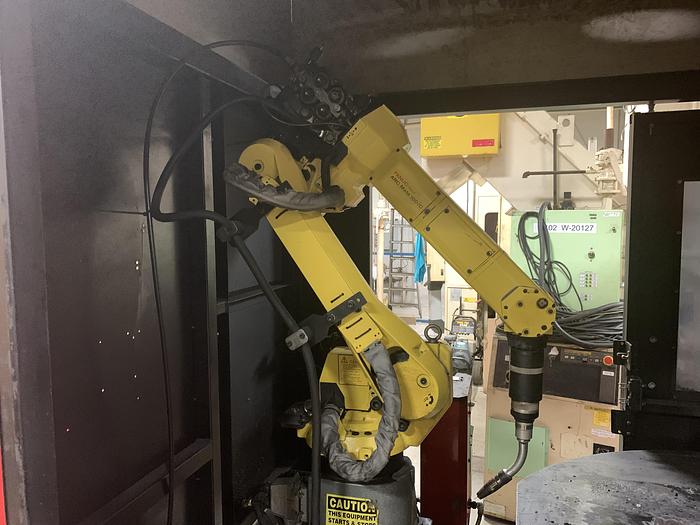

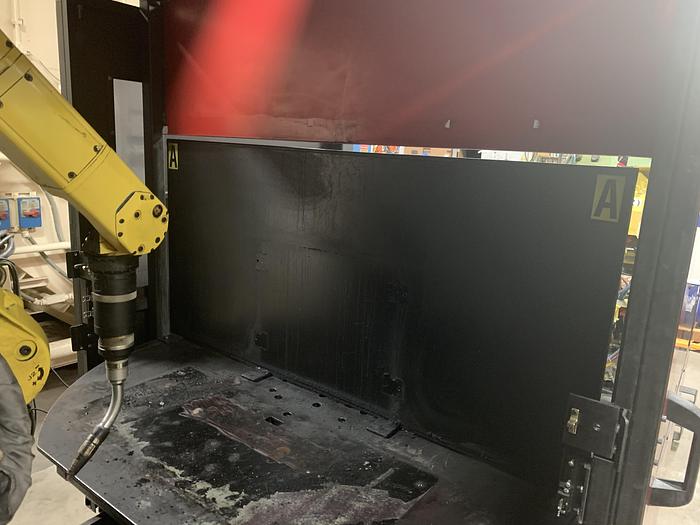

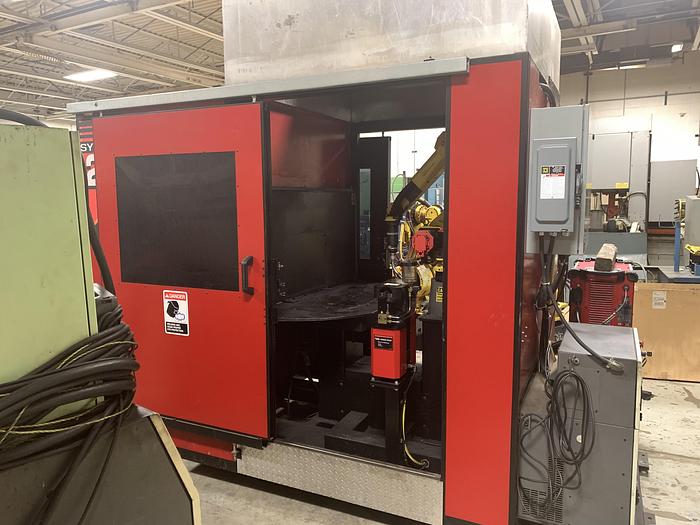

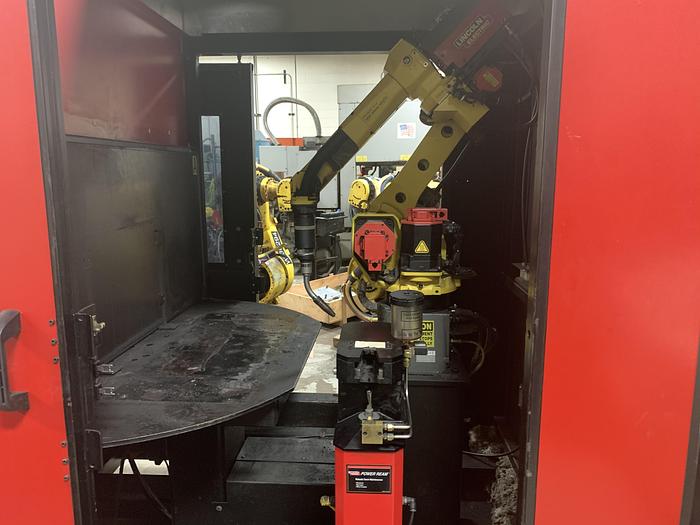

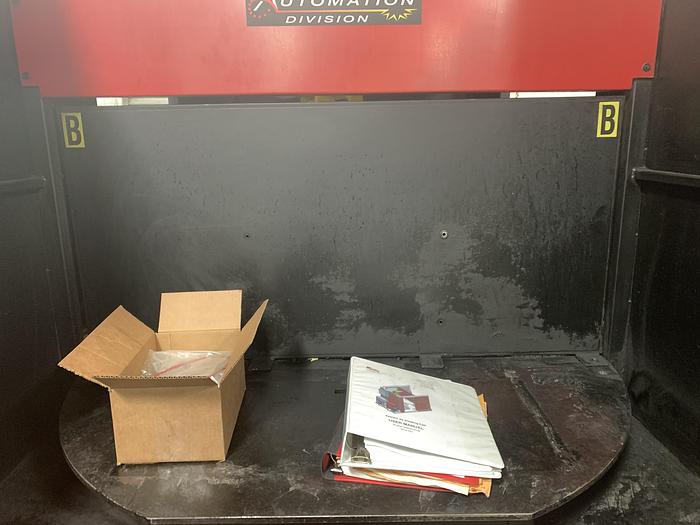

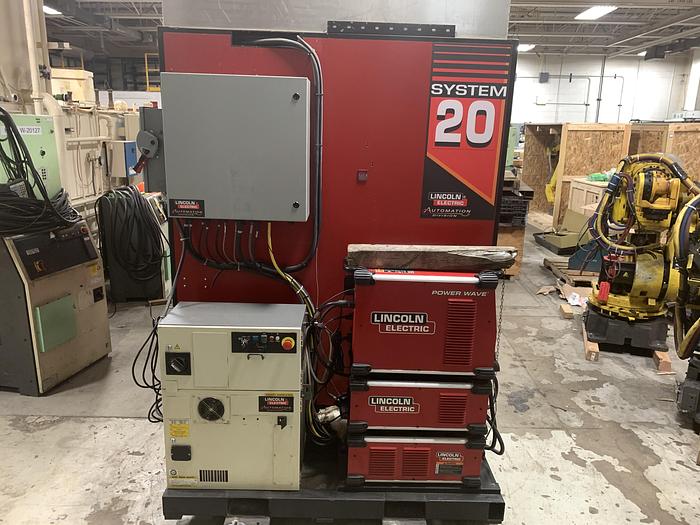

1-USED LINCOLN ELECTRIC SYSTEM 20 A/B SIDED INDEX TABLE MIG WELDING CELL WITH FANUC ARCMATE 100iC ROBOT AND R30iB CONTROLLER ROBOT SERIAL NUMBER F125646 TYPE A05B-1221-B401 DATE OF MFG. 07/2012 STK#104057 HOURS SHOWN ON METER 4,109 ======================================================= SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: HOURS SHOWN ON METER 4,109 This is a completely enclosed on common base robotic mig welding cell equipped with A/B sided Index table. The unit can easily be relocated inside your plant. Table diameter 58" Distance wall to outer edge of table is 26" Table load capacity This FANUC ARC Mate 100iC is a 6 axis robot designed to provide maximum performance and reliability for welding and cutting applications. The 100iC protects the weld torch cable, gas lines, air lines, and the wire feeder motor cable by routing them inside the robot arm. This improves reliability and reduces setup time, prevents cable interference, and allows offline program generation without compromising the cable integrity. Robot Specifications: Axes: 6 Payload: 10.00kg H-Reach: 1420.00mm Repeatability: ±0.0800mm Robot Mass: 130.00kg Structure: Articulated Mounting: Floor, Inverted, Angle Robot Motion Speed: J1 210 °/s (3.67 rad/s) J2 190 °/s (3.32 rad/s) J3 210 °/s (3.67 rad/s) J4 400 °/s (6.98 rad/s) J5 400 °/s (6.98 rad/s) J6 600 °/s (10.47 rad/s) Robot Motion Range: J1 ±360° J2 ±250° J3 ±447° J4 ±380° J5 +380° - 280° J6 +720° - 540° Robot Applications: Arc Welding Robots Laser Welding Robots MAG Welding Robots MIG Welding Robots Orbital Welding Robots Oxyacetylene Welding Robots Plasma Cutting Robots Plasma Welding Robots Submerged Arc Welding Robots TIG Welding Robots This Cell is equipped with: Fanuc Arcmate 100iC Robot Fanuc R30iB controller Color I pendant teach pendant 58" Diameter A/B sided index Table Light Curtains Welding Torch Wire Feeder Torch Tip Reemer Lincoln power wave R350 welding power supply Lincoln STT Module Lincoln Water Cooler All cables Assorted books and literature THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
