BRAND NEW KAWASAKI BX300L ROBOT MECHANICAL UNIT ONLY

BRAND NEW KAWASAKI BX300L ROBOT MECHANICAL UNIT ONLY

Contact us for price

Location:Imlay City, MI

Description

1- BRAND NEW KAWASAKI MODEL BX300L MECHANICAL UNIT ONLY


STK#105130

 ======================

SPECIFICATIONS OBTAINED FROM OEM SOURCE.

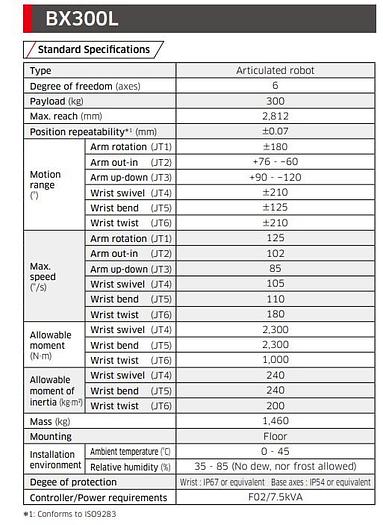

ROBOT SPECIFICATIONS:


PAYLOAD: 300KG

MAX. REACH: 2,812 MM

ROBOT CATEGORY: LARGE GENERAL PURPOSE ROBOTS (100-300KG PAYLOAD)

MOUNTING: FLOOR

ROBOT SERIES: BX SERIES

POSITIONAL REPEATABILITY: ±0.07MM


ROBOT MOTION RANGE (DEGREES):

ARM ROTATION (JT1): ±180

ARM OUT-IN (JT2): +76 - −60

ARM UP-DOWN (JT3): +90 - −120

WRIST SWIVEL (JT4): ±210

WRIST BEND (JT5): ±125

WRIST TWIST (JT6): ±210


MAXIMUM ROBOT MOTION SPEEDS (DEGREES PER SECOND):

ARM ROTATION (JT1): 125

ARM OUT-IN (JT2): 120

ARM UP-DOWN (JT3): 85

WRIST SWIVEL (JT4): 105

WRIST BEND (JT5): 110

WRIST TWIST (JT6): 180


ROBOT WRIST MOMENT (N X M)

WRIST SWIVEL (JT4): 2,300

WRIST BEND (JT5): 2,300

WRIST TWIST (JT6): 1,000


ROBOT WRIST MOMENT OF INERTIA (KG X M SQUARED)

WRIST SWIVEL (JT4): 240

WRIST BEND (JT5): 240

WRIST TWIST (JT6): 200


ROBOT MASS (KG)

1,460


DEGREE OF PROTECTION

ROBOT WRIST: IP67

BASE AXES: IP54





Description:


Kawasaki's large general-purpose robots (100-300kg payload) are used in diverse industries, such as the automobile, aerospace, machinery, metal working, electric, electronics and food industries. With high versatility, they can be used for a wide range of applications including assembling, handling and spot welding.


The BX/BT series robots are equipped with hollow wrists and arms.


www.rabindustries.com




Specifications

ManufacturerKAWASAKI
ModelBX300L
ConditionNew
Stock Number105130
PAYLOAD300KG
MAX. REACH2,812 MM
MOUNTINGFLOOR
POSITIONAL REPEATABILITY±0.07MM
