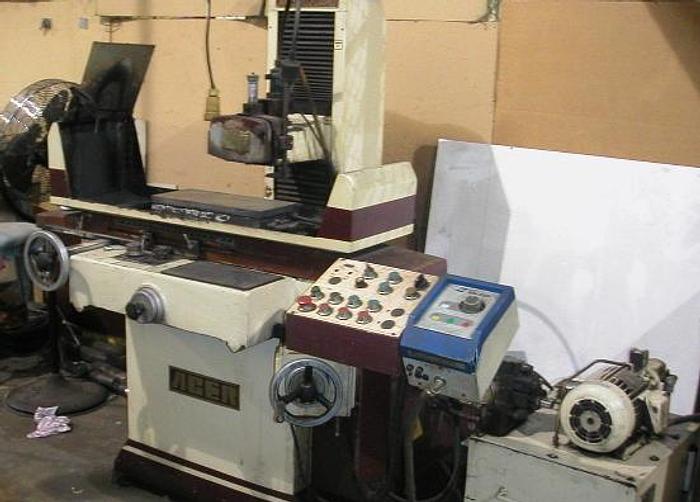

ACER AGS 1020 AHD HYDRAULIC SURFACE GRINDER

$5,450 (USD)

Imlay City, MI

orCall 586-752-0090

Description

1-ACER AGS 1020AHD PRECISION HYDRAULIC SURFACE GRINDER
MACHINE SERIAL NUMBER 9221040
DATE OF MFG. 1992
STK# 102110
===========================================
SPECIFICATIONS SUBJECT TO VERIFICATION:
SPECIFICATIONS:
Working Surface of Table (W x L): 9" x 20"
Max. Grinding (W x L): 10" x 20"
Max Table Travel: 20-1/2"
Max. Crossfeed Travel: 11"
Distance Between Table Surface & Spindle Center: 19-3/4"
Variable Speed by Hydraulic Cylinder: 16 - 80 FPM
Automatic Crossfeed Carriage Movement: 0 - 1"
Downfeed Handwheel Dial: Per Graduation 0.0005" - Per
Revolution 0.1"
Crossfeed Handwheel Dial: Per Graduation 0.001" - Per
Revolution 0.2"
Auto Downfeed Micro Adjustment Dial: Per Graduation
0.0001" - Per Revolution 0.01"
Longitudinal Travel (from - to): 6 - 20"
Crossfeed Travel (from - to): 0 - 10"
Spindle Motor: 2 hp x 2 p
Hydraulic Pump Motor: 2 hp x 4 p
Auto Crossfeed Motor: 1/5 hp x 6 p
Grinding Wheel (O.D. x T x I.D.): 8" x 1-1/4" x 1/2" (3/4)
Rotation Speed of Spindle (Horizontal): 3500 RPM / 60 HZ
Flow Rate of Coolant Pump: 40 L/Min
Max Load Capacity in Addition to Magnetic Chuck: 700 lbs.

FEATURES:
Reinforced high column & heavyweight Meehanite casting.
Direct drive spindle equipped with 4 ABEC-7 angular contact
ball bearings
Spindle motor: 2 HP
10" x 20" Grinding capacity
3 Axis Automatic movement
Auto surface & plunge downfeed
24 volt circuit control.
Double-V crossfeed ways; one V, one flat table ways.
Auto-lube system.
Dual hydraulic pump system: one for the auto incremental
downfeed and one for the table longitudinal travel
Large volume hydraulic tank.
Double nut design for crossfeed leadscrew
19 3/4" \ 23 1/2" from table top to the center of spindle.
Extra wide saddle at 24 1/2" and 30 1/2" each.

www.rabind.com
586-752-0090

Specifications

ManufacturerACER
ModelAGS 1020 AHD
Year1992
ConditionUsed
Serial Number9221040
Stock Number102110
