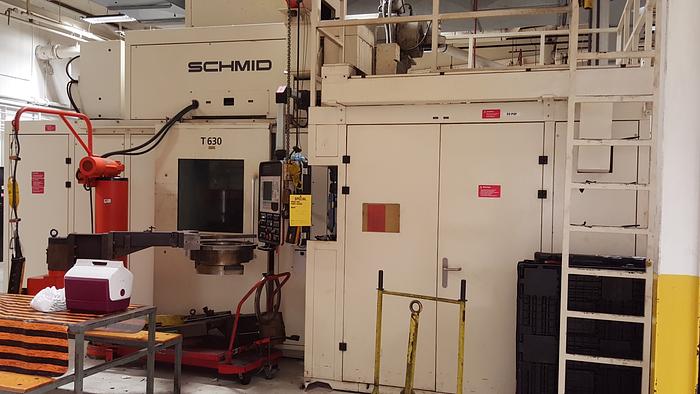

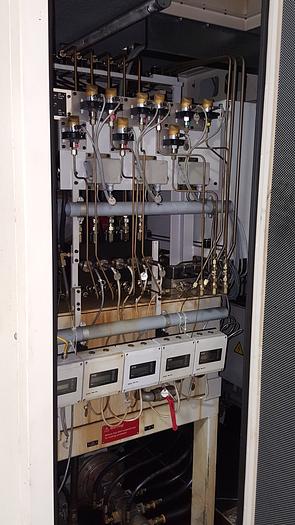

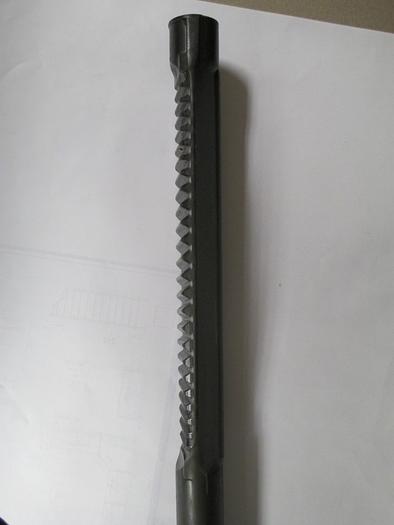

SCHMID MODEL T630 STEERING RACK FORMING PRESS

Contact us for price

Almont, MI

orCall 586-752-0090

Description

1-USED SCHMID MODEL T630 COLD FORM STEERING RACK FORMING PRESS DATE OF MFG. 2002 STK# 103206 ====================================================== SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: REPLACEMENT COST FOR THIS MACHINE IS $2,000,000.00 PLUS PRESS FORCES: TOTAL FORCE 8000 Kn LOWER EJECTOR 1000 kN UPPER EJECTOR 95 kN STOKES: RAM FOR FORMING MAX 240mm RANGE OF ADJUSTABLE RAM STOP 100mm RAM TOTAL MAX 248 mm LOWER EJECTOR MAX 115 MM UPPER EJECTOR MAX 30mm VELOCITIES: FAST APPROACH SPEED 150 mm's FAST RETUN SPEED 200 mm's FORMING SPEED MAX 22 mm's ORBITAL FREQUENCY MAX 280 1/'MIN TOOL AREA: FRONT SPACE BETWEEN RAM GUIDES 600mm SIDE SPACE BETWEEN RAM GUIDES 550MM GREATEST DISTANCE BETWEEN RAM & ORBITAL HEAD 340MM WORKPIECE: LENGTH FROM TOOL CENTER-HYDRAULIC STOPPER 440-700mm LENGTH FROM TOOL CENTER-FIXED STOPPER 100-250MM ELECTRICAL COINNECTION: 3 X 460 V/ 60 Hz POWER CONSUMPTION MAX LOAD 25 KW SURPLUS TO ONGOING PLANT OPERATIONS. BUYER RESPONSIBLE FOR LOADING OUT MACHINE. THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. WWW.RABIND.COM 586-752-0090

Specifications

ManufacturerSCHMID
ModelT630 COLD FORM STEERING RACK FORMING PRESS
Year2002
ConditionUsed
Stock Number103206
