FANUC M710iC/70 FOUNDRY PRO ROBOTIC WET DEBURRING CELL

Almont, MI

Description

1-FANUC M710iC/70 FOUNDRY PRO ROBOTIC WET DEBURRING CELL
WITH FANUC R30iA CONTROLS NEW NEVER USED STILL IN CRATE.
MACHINE SERIAL NUMBER F92242
DATE OF MFG. 5/2008
STK#103122
================================================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

THIS UNIT OFFERS MANY POSSIBILITIES FOR DEBURRING OR BUFFING OPERATIONS
IN AN ENCLOSED WORKING ENVIRONMENT. EXISTING SPINDLES CAN BE MOVED TO
OTHER LOCATIONS AND OUTFITTED WITH OTHER MEDIA OR BUFFING HEADS.

NEW IN THE CRATE 2008 FANUC M710iC/70 FOUNDRY PRO

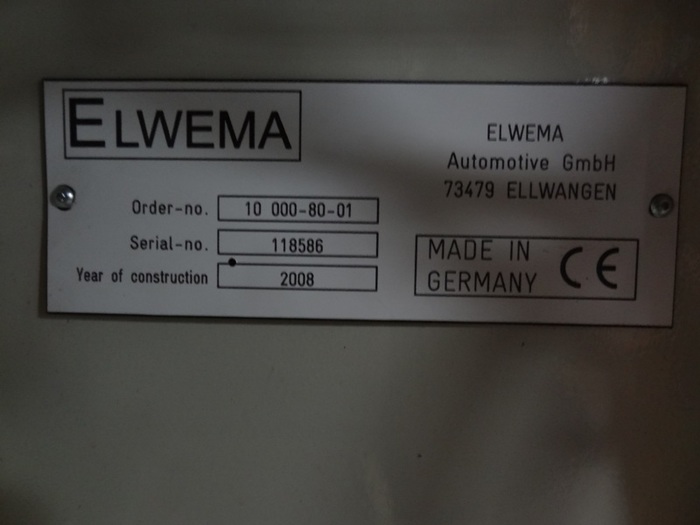

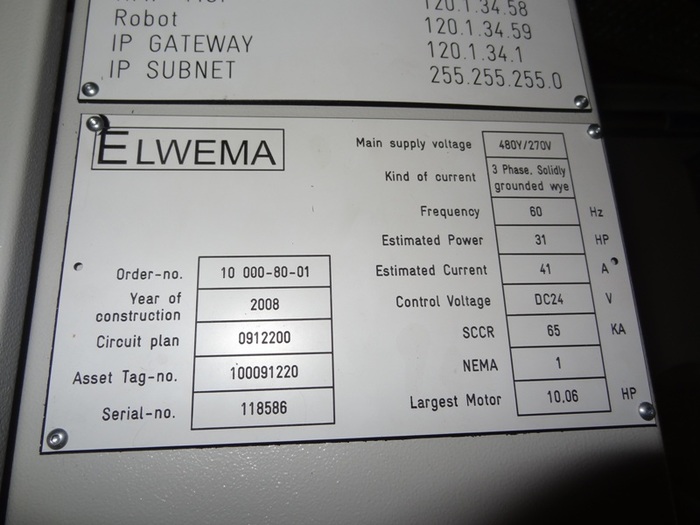

WET ROBOTIC DEBURRING CELL INTEGRATED BY ELWEMA, GERMANY.

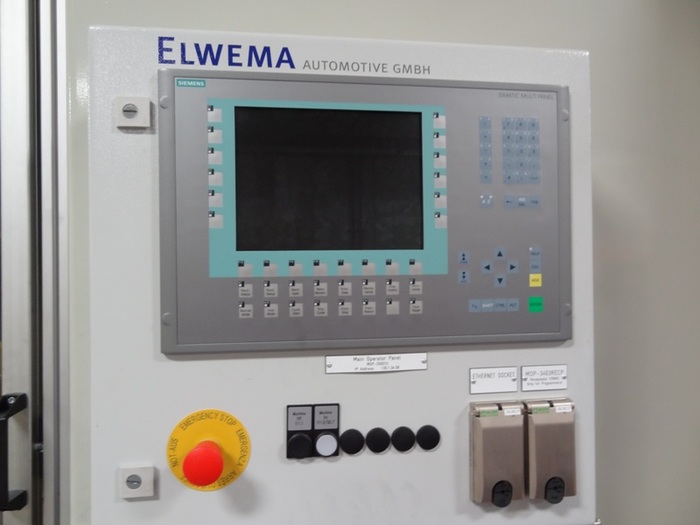

EQUIPPED WITH FANUC R30iA CONTROLS. INTEGRATED WITH SIEMENS
CONTROLS. SIEMANS MICROMASTER 440.

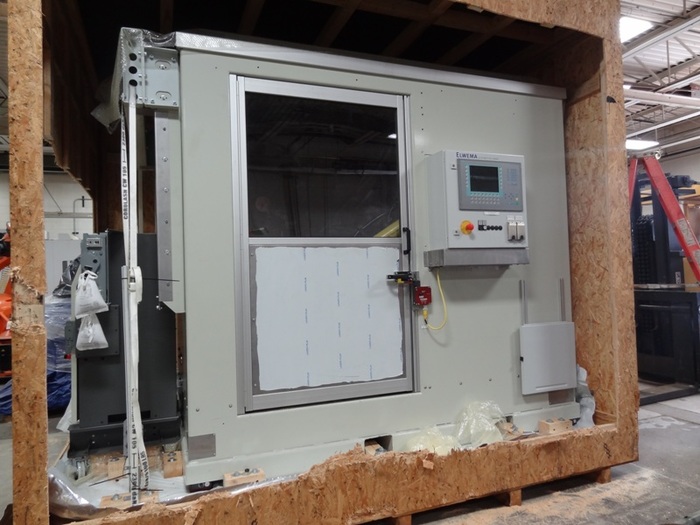

INTERIOR WORK CELL DIMENSIONS 104"L X 63"W X 85"TALL. WORK CELL
IS EQUIPPED WITH AUTOMATIC DOOR IN FRONT OF ROBOT FOR WORK TO PASS
IN AND OUT OF CELL. AUTOMATIC DOOR OPENING MEASURES 47"WIDE X 25"TALL.
EQUIPPED WITH ONE MAN DOOR WITH SAFTEY INTERLOCK MEASURES 72" TALL X 40" WIDE.
TOP OF ENCLOSURE IS COVERED WITH A HEAVY WIRE MESH GRATE TO PROVIDE AIR FLOW
SHOULD CUSTOMER WISH TO INSTALL A DUST/MIST COLLECTION SYSTEM.

THIS UNIT IS EQUIPPED WITH TWO DEBURRING HEADS
ONE IS 40 TAPER 7.5 kw, 1,740 RPM. THE OTHER HEAD IS 30 TAPER,
RATED AT 3.7 kw, 3,330 RPM.

SPINDLE ONE CENTERLINE OF SPINDLE TO FLOOR 16 1/2"
SPINDLE TWO CENTERLINE OF SPINDLE TO FLOOR 35 1/2"
PROVISIONS IN CABINET FOR ADDTIONAL SPINDLES AT 48", 59 1/2" & 71" FROM FLOOR

FIXTURE ON END OF ARM APPEARS TO BE SET UP TO HANDLE ALUMINUM
ENGINE HEADS WITH SEVENTH AXIS DRIVE.

SYSTEM IS PLUMBED FOR WATER 8 NOZZLES FOR RINSING FLOOR AREA
AREA OF DUST. FLOOR RINSES TO FORWARD SECTION OF ENCLOSURE
WHERE IT DROPS INTO LOWER PAN UNDER 52" X 49" GRATE IN THE FLOOR.
UNDER THE GRATE ARE AN ADDTIONAL 8 NOZZLES TO RINSE DEBURRING DUST
OUT OF WORK CELL AREA THRU TROUGH IN FLOOR.

THE ENTIRE UNIT IS SELF CONTAINED WITH FORK POCKETS BUILT
INTO BASE FOR EASY MOVING AROUND YOUR PLANT.

ROBOT SPECIFICATIONS AS FOLLOWS:
Axes: 6
Payload: 70kg
H-Reach: 2050mm
Repeatability: ±0.07mm
Robot Mass: 560kg
Structure: Standard Model, High Payload
Mounting: Floor, ceiling, angle, and wall

Robot Motion Speed

J1 160 °/s (2.79 rad/s)
J2 120 °/s (2.09 rad/s)
J3 120 °/s (2.09 rad/s)
J4 225 °/s (3.93 rad/s)
J5 225 °/s (3.93 rad/s)
J6 225 °/s (3.93 rad/s)

Robot Motion Range

J1 ±360°
J2 ±225°
J3 ±440°
J4 ±720°
J5 ±250°
J6 ±720°

EQUIPPED WITH:
FANUC R30iA CONTROLLER
CABLES
TEACH PENDANT

FOB TRUCK ALMONT, MI 48003

CALL 586-752-0090 FOR MORE DETAILS.

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

CALL 586-752-0090
WWW.RABIND.COM

Specifications

ManufacturerFANUC
ModelM710iC/70
Year2008
ConditionUsed
Serial NumberF92242
Stock Number103122
