FANUC LR MATE 200iD 6 AXIS CNC ROBOT WITH R30iB CONTOLLER

FANUC LR MATE 200iD 6 AXIS CNC ROBOT WITH R30iB CONTOLLER

Contact us for price

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

1-FANUC LR MATE 200iD 6 AXIS CNC ROBOT WITH FANUC R30iB CONTROLLER

SERIAL NUMBER F140146

DATE OF MFG. 09/2013

STK#104191

================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


This FANUC LRMate 200iD is the latest, compact, mini robot that has the approximate reach and size of a human arm. This helps to minimize interference with peripheral devices and allows operation in narrow spaces. It is known as the lightest mechanical unit in its class and has multiple mounting options which helps with installation flexibility.


Robot Specifications:

Axes: 6

Payload: 7.00kg

H-Reach: 717.00mm

Repeatability: ±0.0200mm

Robot Mass: 25.00kg

Structure: Articulated

Mounting: Floor


Robot Motion Speed:

J1 450 °/s (7.85 rad/s)

J2 380 °/s (6.63 rad/s)

J3 520 °/s (9.08 rad/s)

J4 550 °/s (9.6 rad/s)

J5 545 °/s (9.51 rad/s)

J6 1000 °/s (17.45 rad/s)


Robot Motion Range:

J1 +340° - 360°

J2 ±245°

J3 ±420°

J4 ±380°

J5 ±250°

J6 ±720°


Robot Applications

  • Assembly Robots
  • Deburring Robots
  • Machine Loading Robots
  • Order Picking Robots
  • Polishing Robots
  • Vision Robots
  • 3D Laser Vision Robots


EQUIPPED WITH:

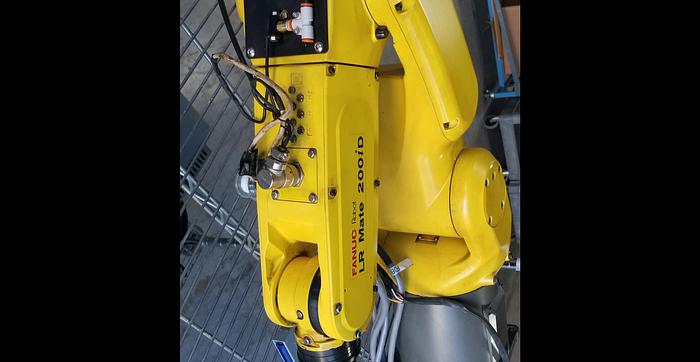

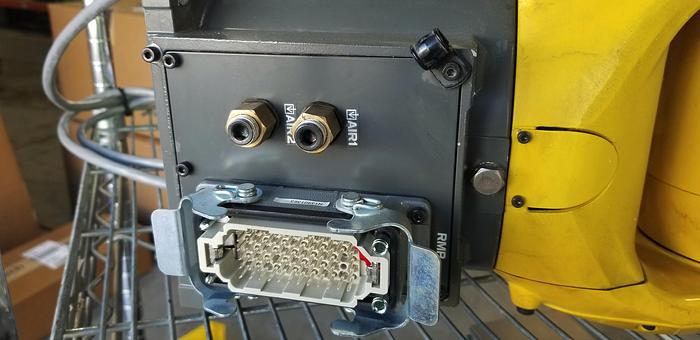

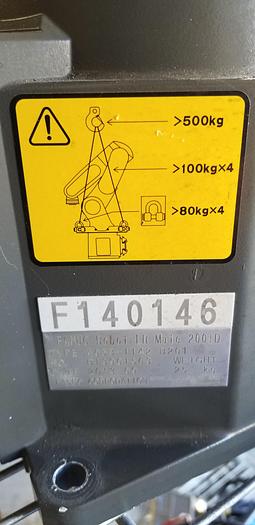

FANUC LR MATE 200iD ROBOT MECHANICAL UNIT

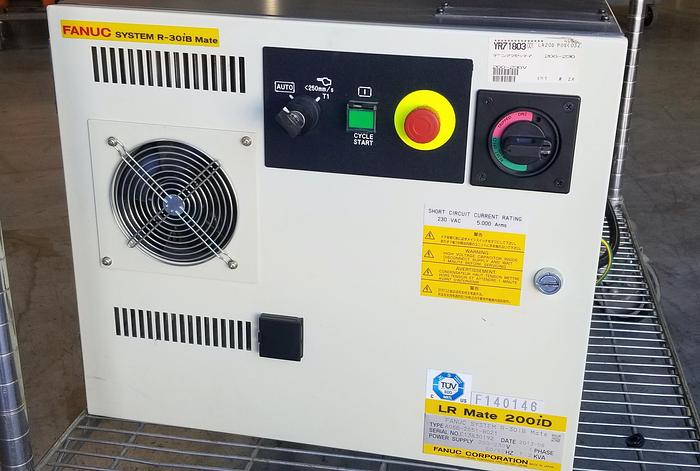

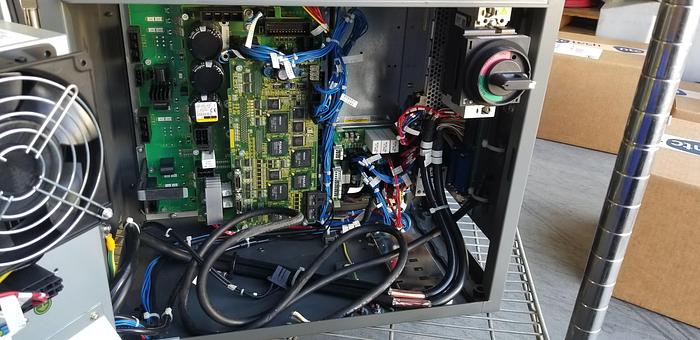

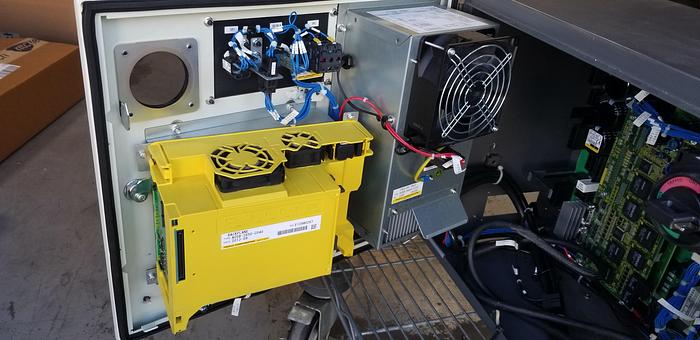

FANUC R30iB MATE CONTROLLER

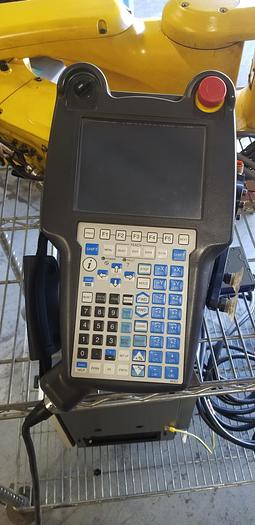

FANUC i-TEACH COLOR TEACH PENDANT

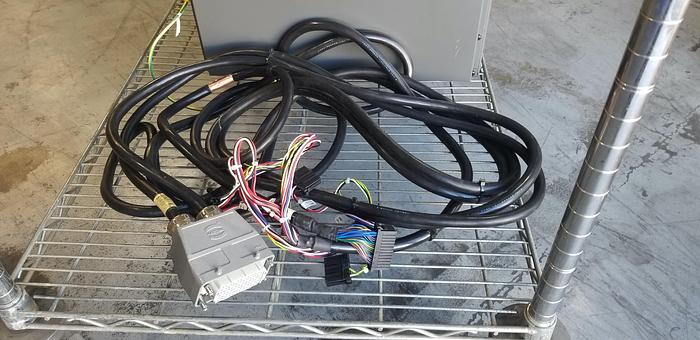

FANUC ROBOT CONNECTION CABLE


FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC LR MATE 200ID
Year2013
ConditionUsed
Serial NumberF104146
Stock Number104191
