TEC WELD ROBOTIC DUAL TRUNION WELDING CELL WITH 2 FANUC ARCMATE 120iB'S

Contact us for price

Almont, MI

orCall 586-752-0090

Description

1- USED TEC WELD ROBOTIC DUAL TRUNION WELDING CELL WITH 2 FANUC ARCMATE 120iB'S

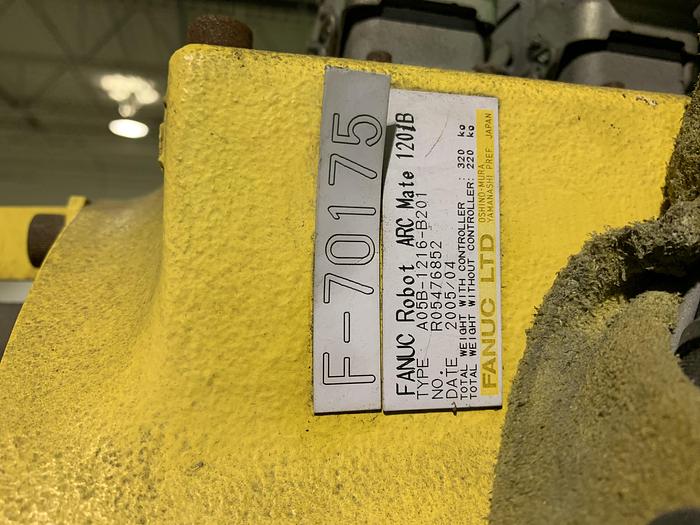

ROBOT SERIAL NUMBERS F70715 & F70176
DATE OF MFG. 04/2005
STK# 103711
==========================================
SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED
RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE
AND TO VERIFICATION BY BUYER:

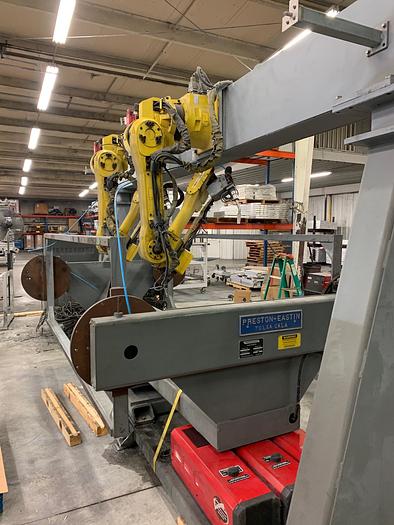

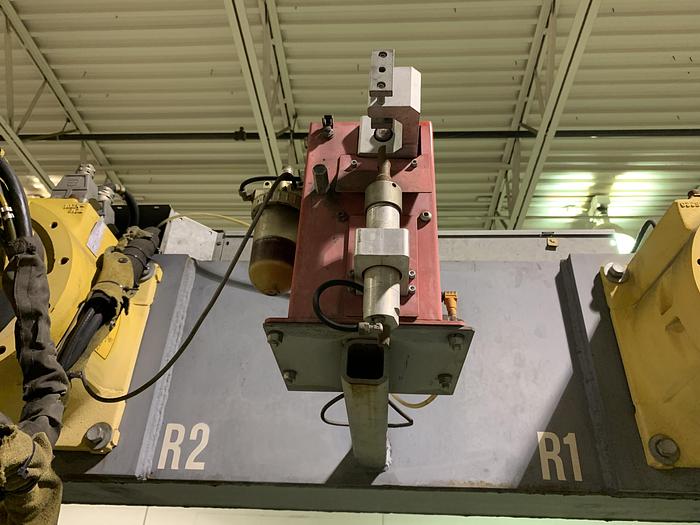

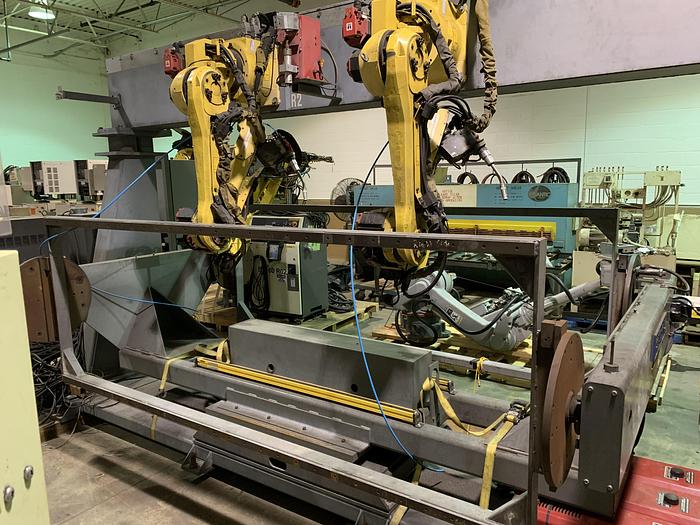

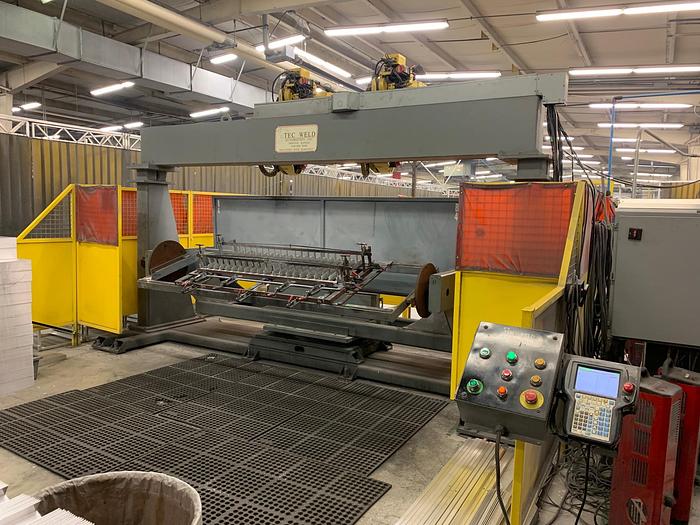

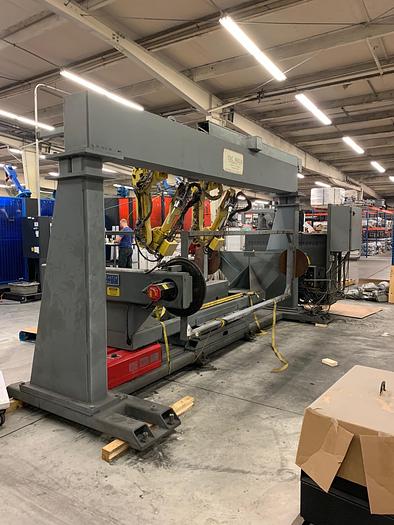

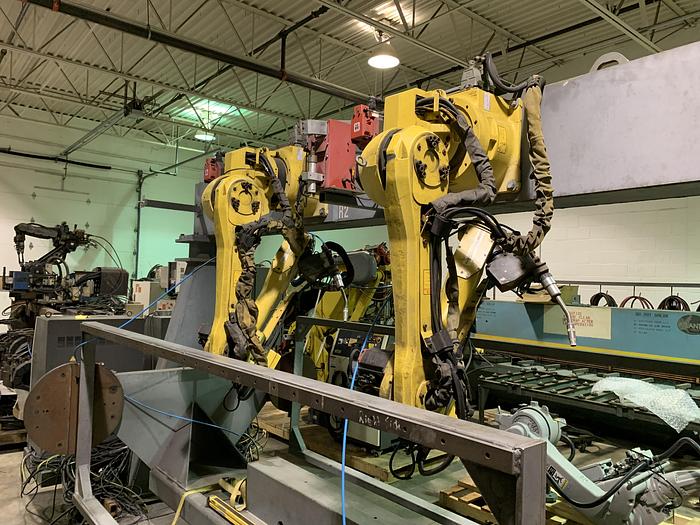

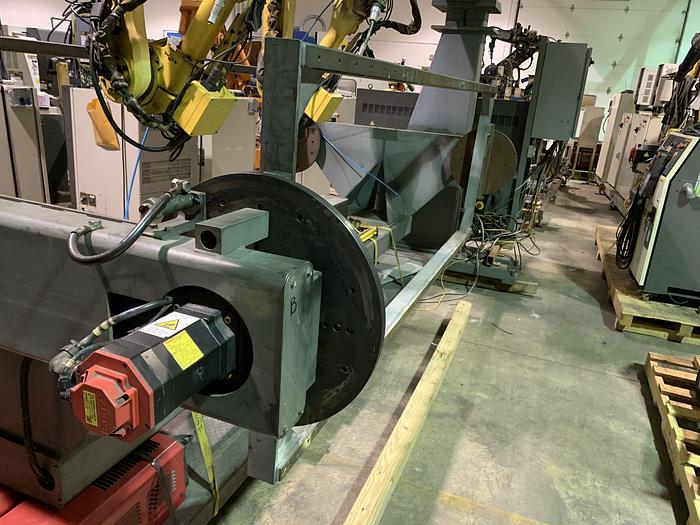

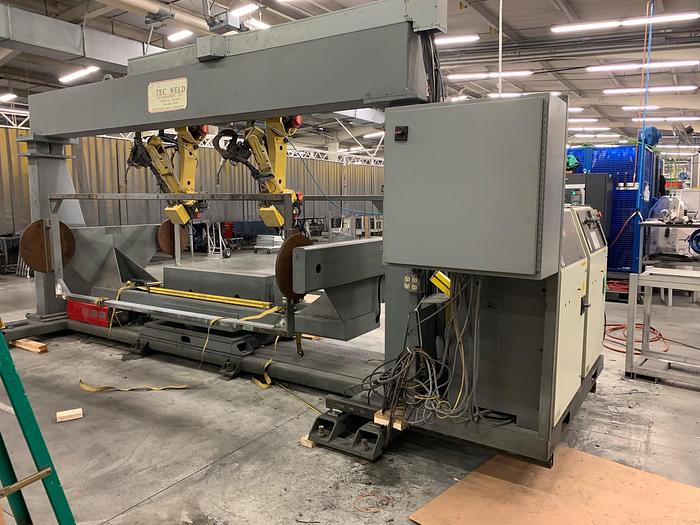

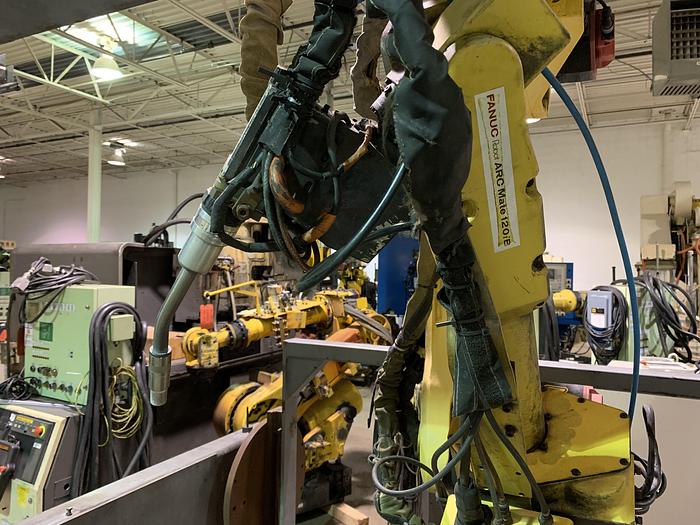

THIS IS A DUAL SERVO TRUNION CELL. ROBOTS ARE MOUNTED ON BEAM
ABOVE. THE LOAD UNLOAD TRUNIONS INDEX 180 DEGREES TO PRESENT
WORK TO THE ARCMATE WELDING ROBOTS.

TRUNION CAPACITY EACH SIDE:
500 LBS PER SIDE
LENGTH 120"
SWING 50"

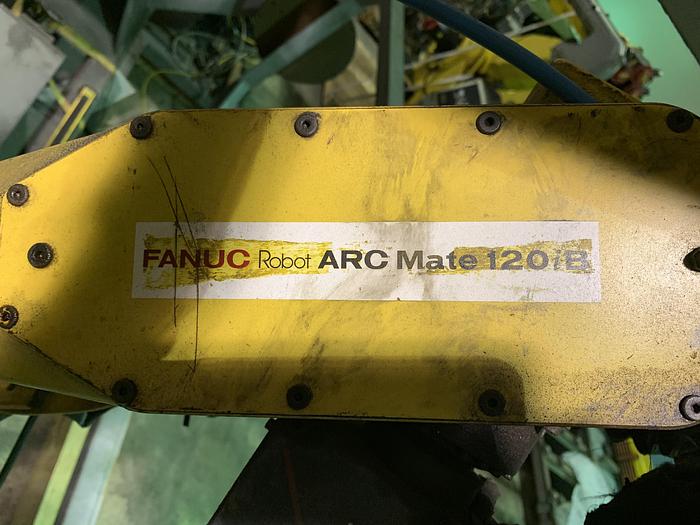

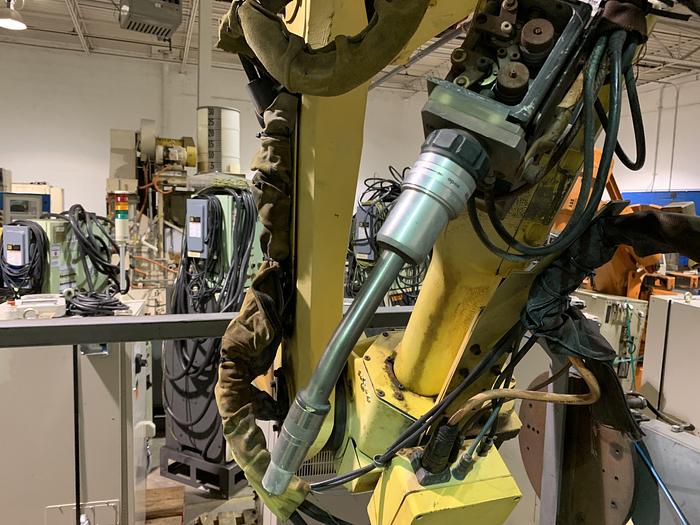

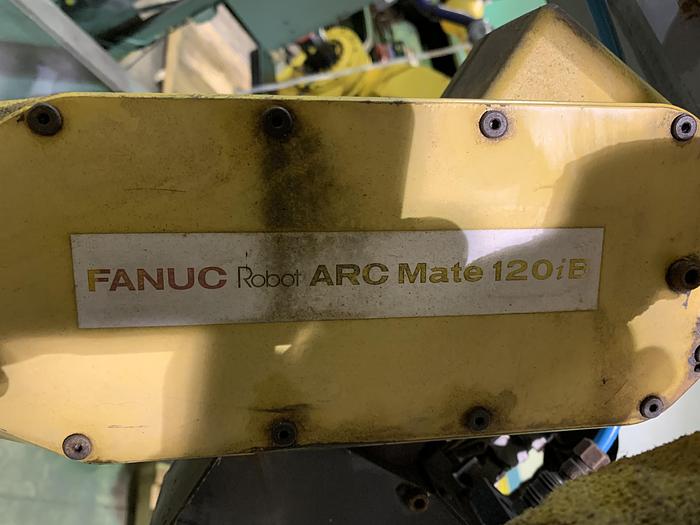

(2) FANUC ARCMATE 120iB ROBOTS

Robot Specifications
Axes: 6
Payload: 20.00kg
H-Reach: 1667.00mm
Repeatability: ±0.0800mm
Robot Mass: 220.00kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed
J1 165 °/s (2.88 rad/s)
J2 165 °/s (2.88 rad/s)
J3 175 °/s (3.05 rad/s)
J4 350 °/s (6.11 rad/s)
J5 340 °/s (5.93 rad/s)
J6 520 °/s (9.08 rad/s)

Robot Motion Range
J1 ±170°
J2 +160° - 90°
J3 +290° - 170°
J4 ±200°
J5 ±140°
J6 ±450°

TYPICAL ROBOT USES:
MIG Welding Robots
Oxyacetylene Welding Robots
Plasma Cutting Robots
Plasma Welding Robots
Submerged Arc Welding Robots
TIG Welding Robots
MAG Welding Robots
Welding Automation Robots
Arc Welding Robots

Suitable for high-speed welding and cutting processes, the FANUC ARC Mate 120iB is a six-axis robotic arm that is servo-driven. The FANUC 120iB RJ3iB welding robot provides accurate and consistent path performance based on its simple and reliable construction.

In addition to high-speed cutting and welding, the ARC Mate 120iB is capable of performing a variety of welding applications, including MIG welding, TIG welding, Plasma welding and Plasma cutting.

EQUIPPED WITH:

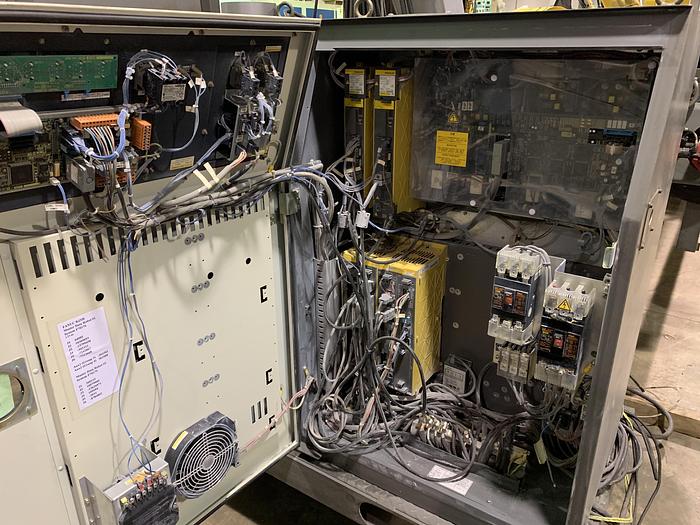

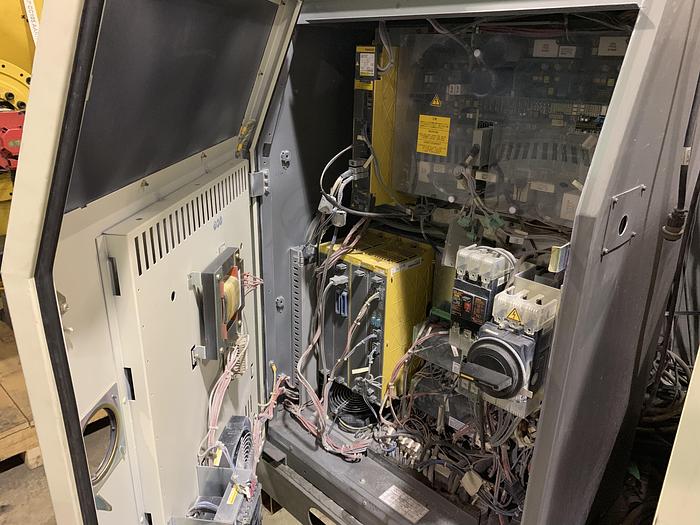

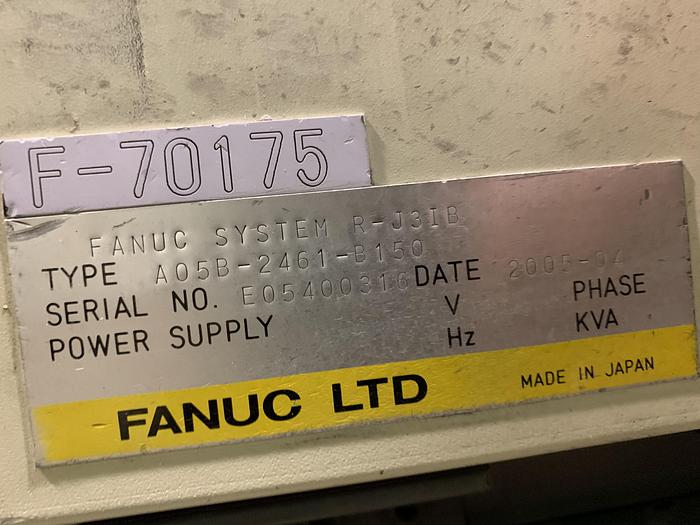

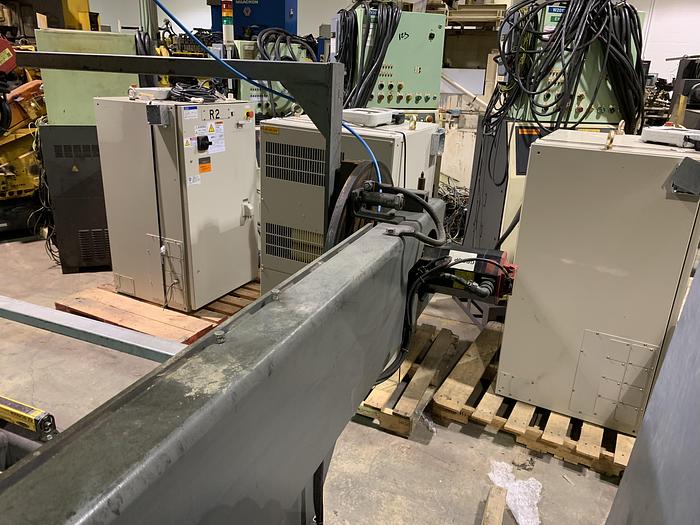

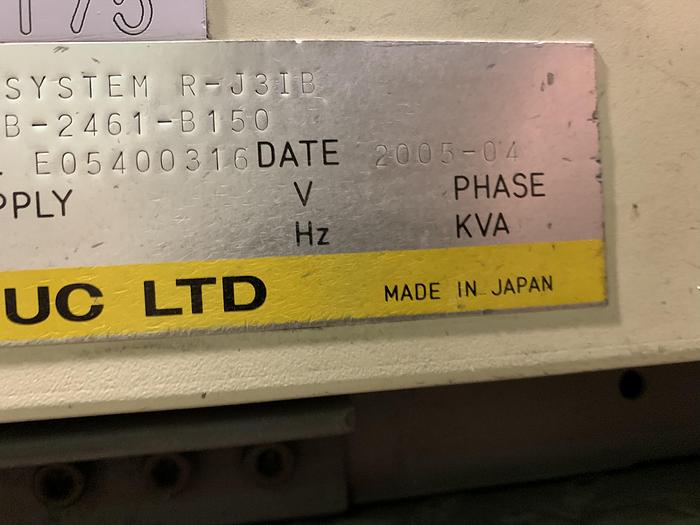

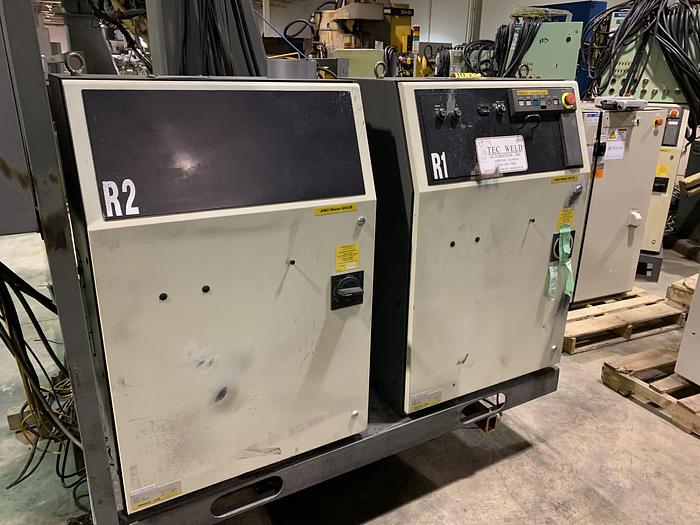

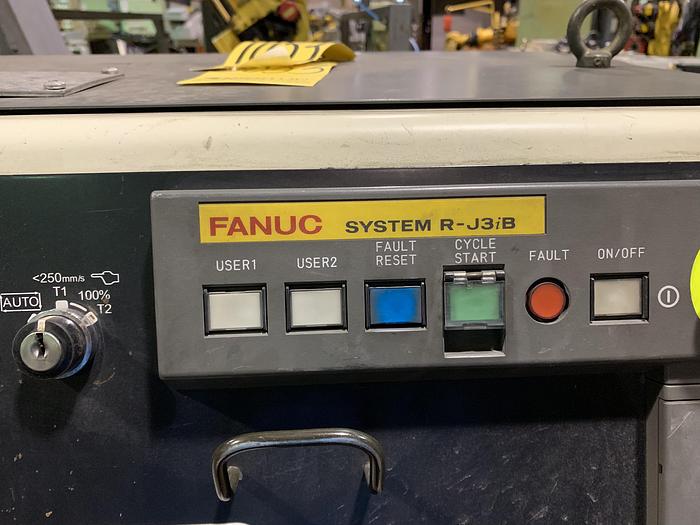

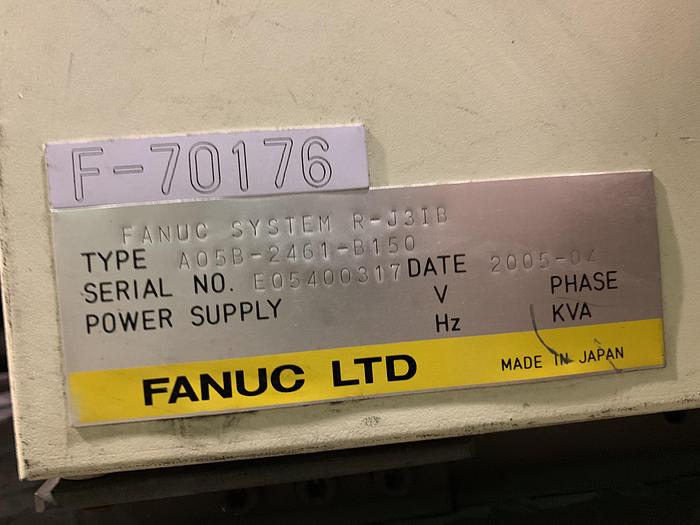

TWO FANUC RJ3iB ROBOT CONTROLLERS

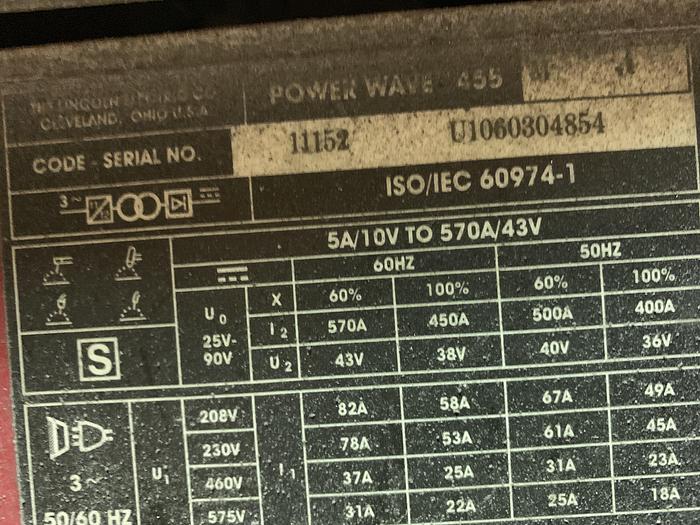

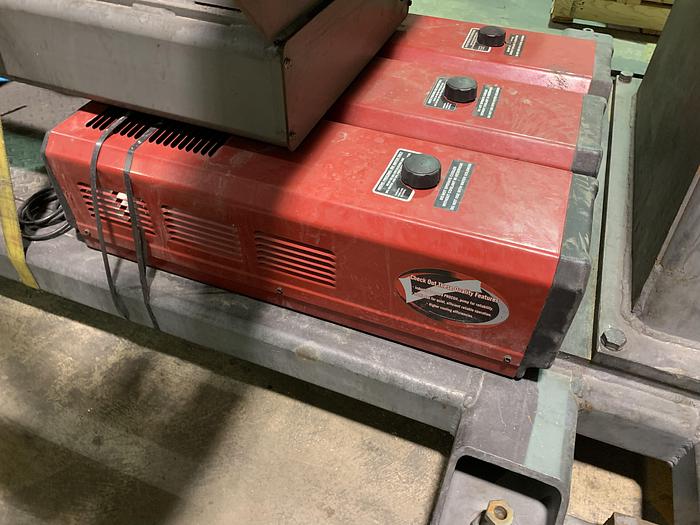

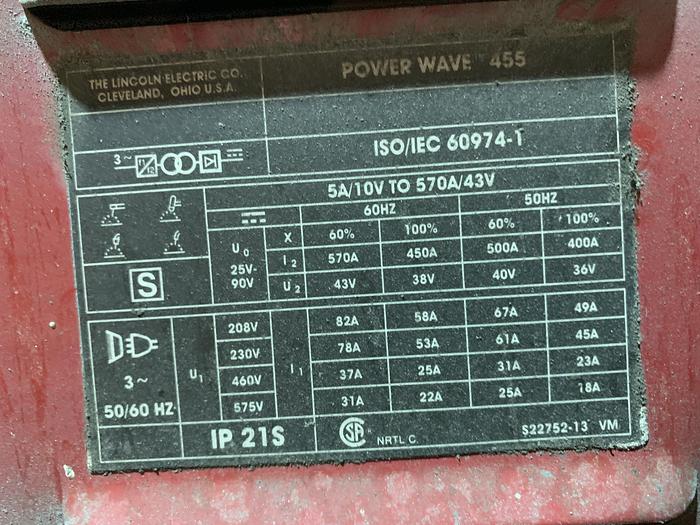

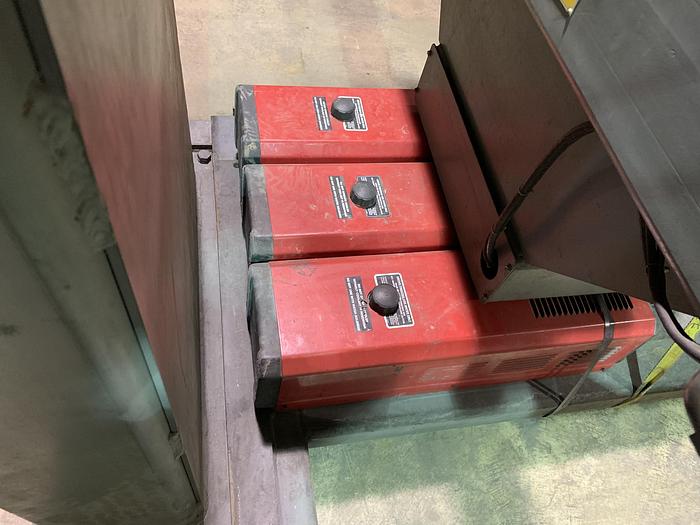

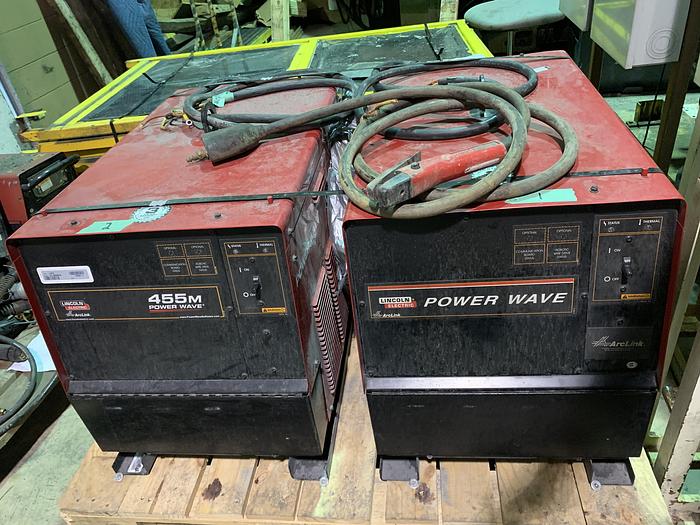

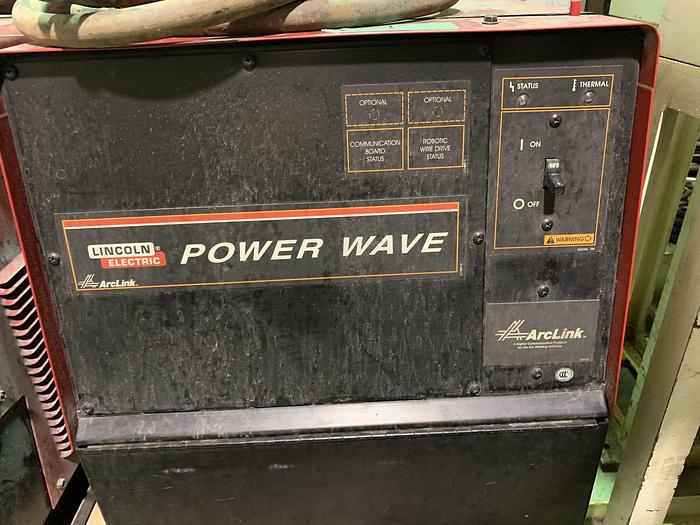

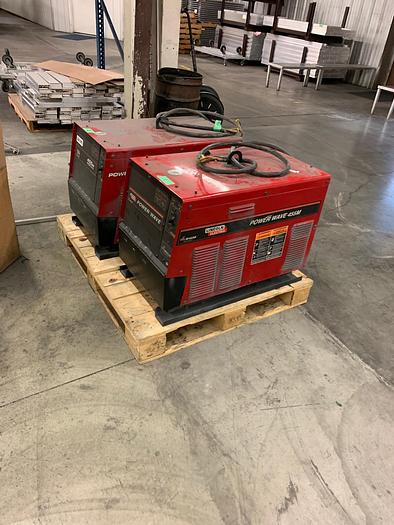

2 LINCOLN ELECTRIC 455M WELDERS

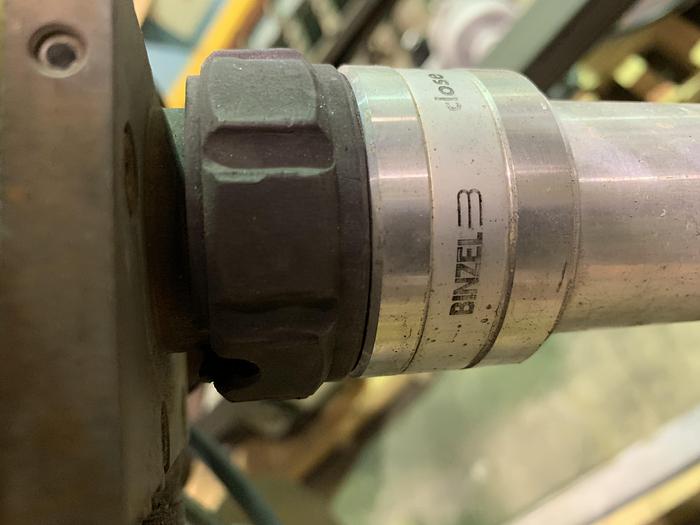

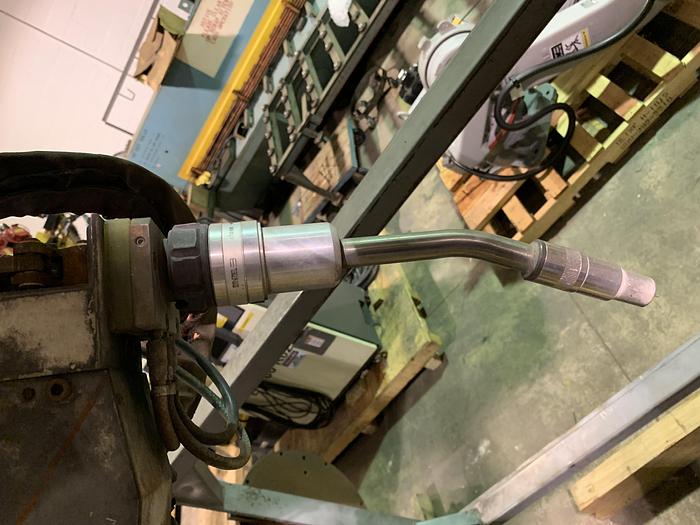

WELDING TORCHES
ALL CABLES REQUIRED FOR OPERATION
TEACH PENDANT

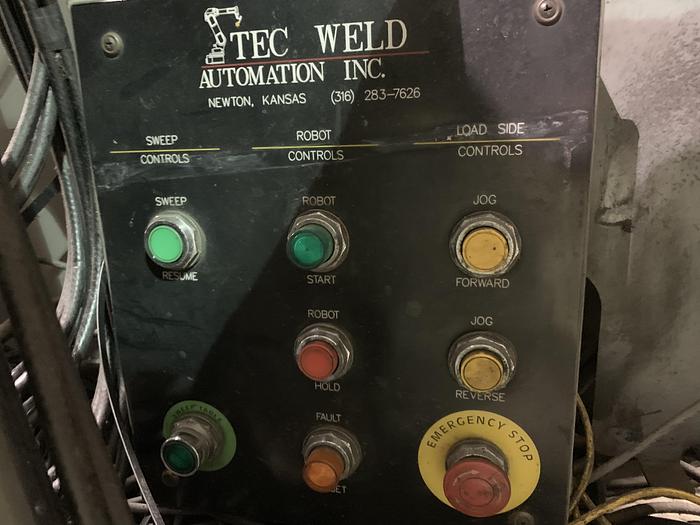

OPERATORS STATION

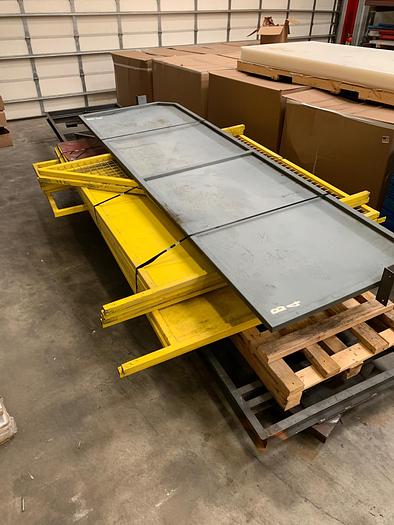

GUARDING
ASSORTED CONSUMABLES
ASSORTED MANUALS/LITERATURE
ASSORTED SPARE PARTS INCLUDING THE EXTRA WELDER

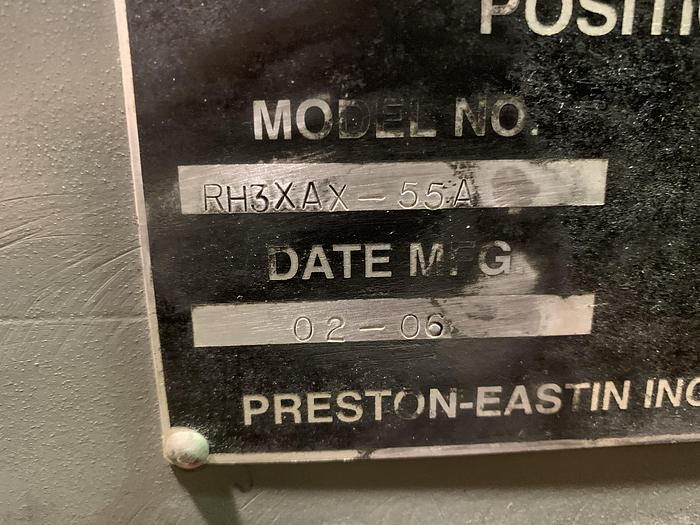

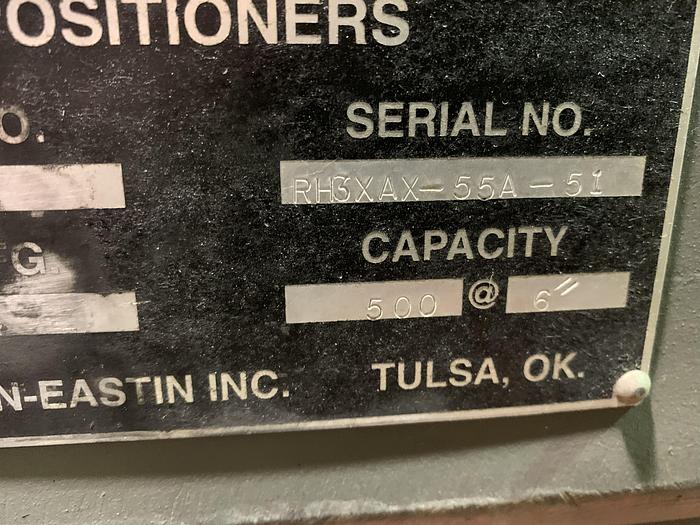

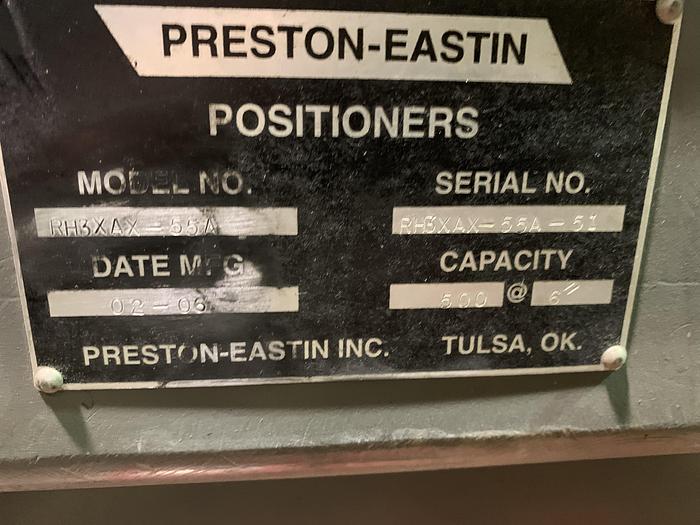

WELDING POSITIONER:
PRESTON EASTIN MODEL RH3XAX-5SA

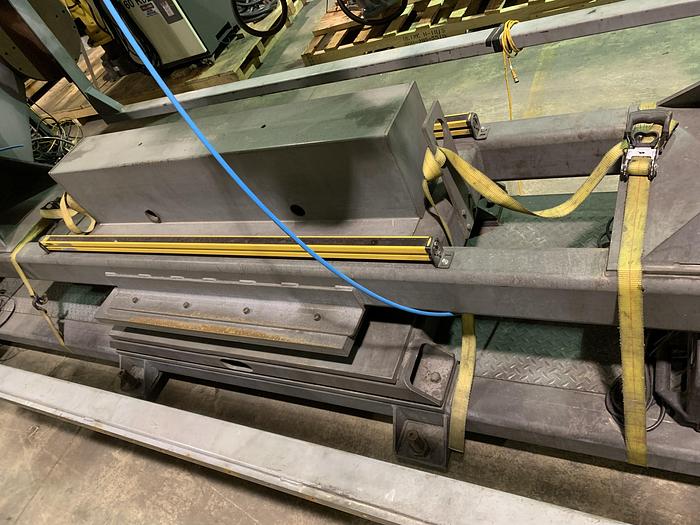

UNIT HAS BEEN DISASSEMBLED AND IS READY FOR SHIPPING

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND
BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS
AND CONDITIONS.

WWW.RABIND.COM
586-752-0090

Specifications

ManufacturerTEC WELD
ModelROBOTIC WELDING CELL WITH DUAL FANUC ARCMATE 120iB'S
ConditionUsed
Serial NumberF70176 & F70175
Stock Number103711
