FANUC ARCMATE 200iB MIG WELDING CELL WITH A/B SIDED INDEX TABLE AND 7TH AXIS SERVO HEADSLTOCK

FANUC ARCMATE 200iB MIG WELDING CELL WITH A/B SIDED INDEX TABLE AND 7TH AXIS SERVO HEADSLTOCK

Contact us for price

Available quantity: 1

Imlay City, MI

orCall 586-752-0090

Description

1-USED FANUC ARCMATE 100iB ROBOTIC MIG WELDING CELL WITH FANUC RJ3iB CONTROLLER.

WELD CELL IS CONFIGURED AS A/B SIDED INDEX TABLE.

SERVO DRIVEN WORK HEAD ON EACH SIDE OF THE A/B INDEX TABLE.

DATE OF MFG. 12/2003

STK#104209

=============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


The FANUC ARC Mate 100iB is a six-axis, modular construction, electric servo-driven welding robot that was designed with high speed in mind. Compact and flexible, the Arc Mate 100iB robot is capable of high speed welding and cutting, yet precise enough to handle pick and place applications. The FANUC ARC Mate 100iB has a relatively lightweight payload ability at 6kg, which makes it perfect for welding applications.


Robot Specifications:

Axes: 6

Payload: 6.00kg

H-Reach: 1373.00mm

Repeatability: ±0.0800mm

Robot Mass: 135.00kg

Structure: Articulated

Mounting: Floor, Inverted, Wall, Angle


Robot Motion Speed:

J1 150 °/s (2.62 rad/s)

J2 160 °/s (2.79 rad/s)

J3 170 °/s (2.97 rad/s)

J4 400 °/s (6.98 rad/s)

J5 400 °/s (6.98 rad/s)

J6 520 °/s (9.08 rad/s)


Robot Motion Range:

J1 ±170°

J2 +160° - 90°

J3 +145° - 170°

J4 ±190°

J5 ±140°

J6 ±360°


Robot Applications:

Arc Welding Robots

Welding Automation Robots

MIG Welding Robots

Orbital Welding Robots

Oxyacetylene Welding Robots

Plasma Cutting Robots

Plasma Welding Robots

Submerged Arc Welding Robots

TIG Welding Robots


Equipped With:

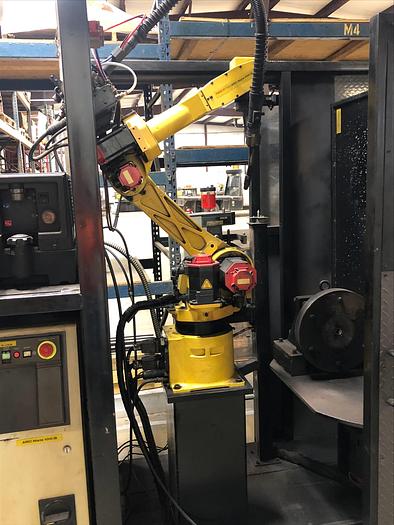

Fanuc Arcmate 100iB Mig Welding Robot

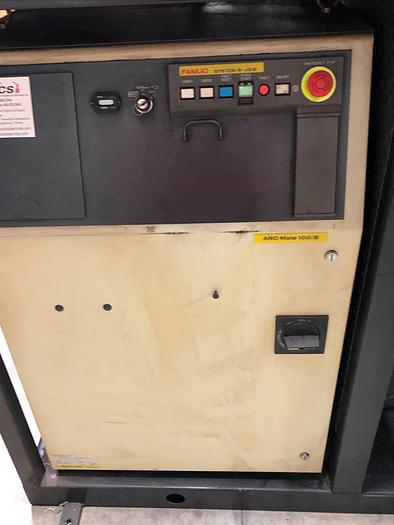

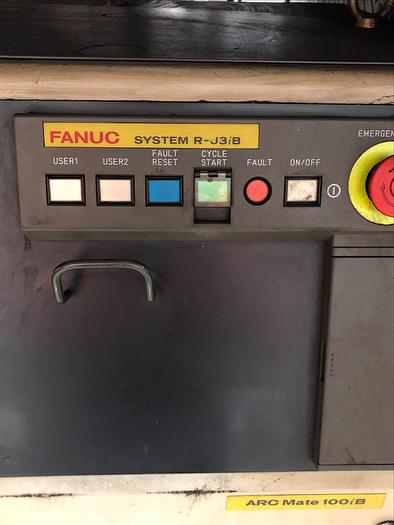

Fanuc RJ3iB Controller

All Cables

Fanuc Teach Pendant

Lincoln Wire Feeder

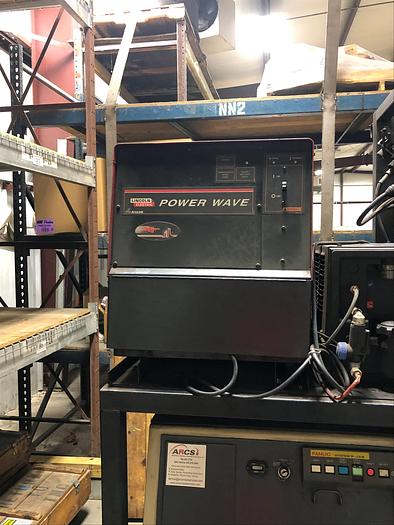

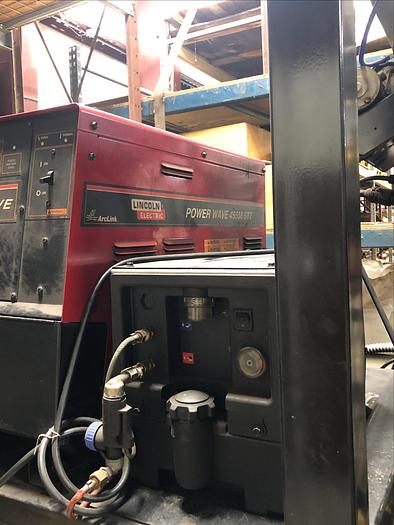

Lincoln Power Wave 455M/SST Welding Power Supply

Lincoln Torch Tip Cleaner

Water Cooler

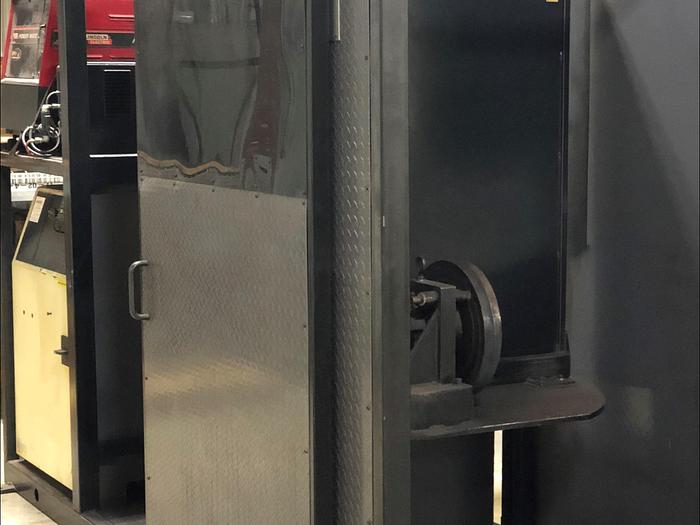

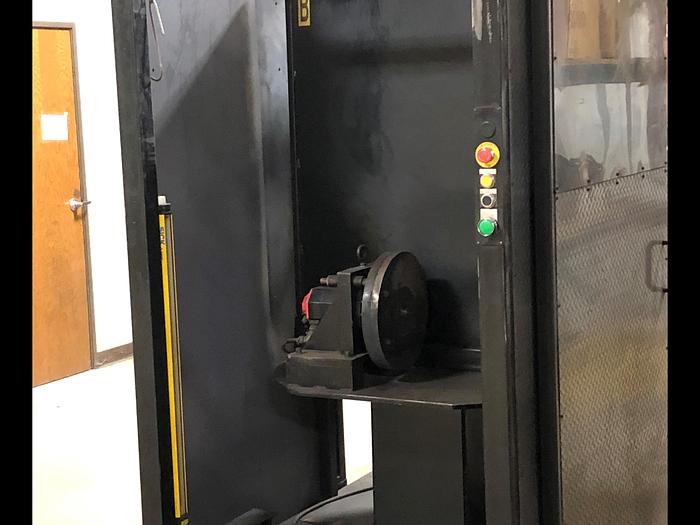

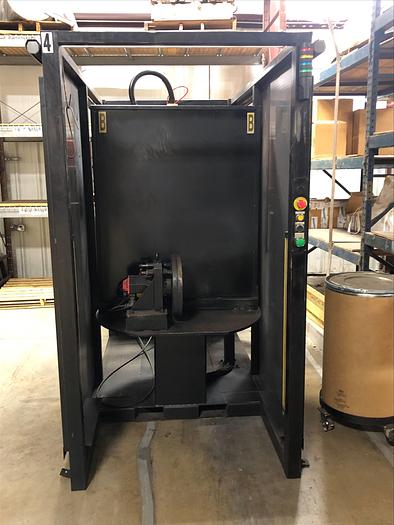

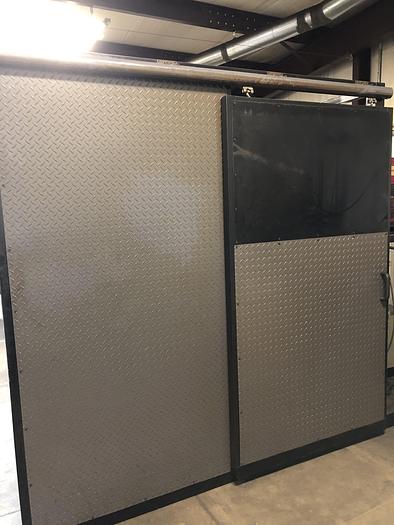

Fabricated base and enclosure with A/B Sided Index Table for work and load/unload

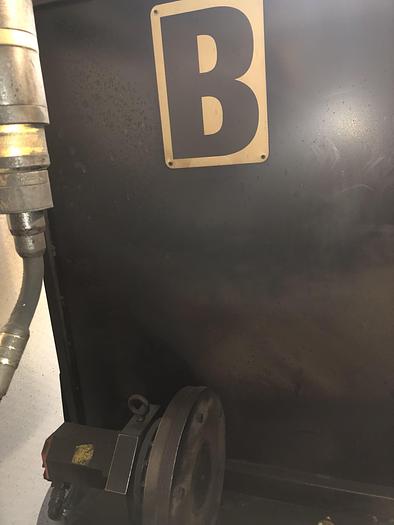

On each table is a 7th axis Servo driven headstock

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFanuc
ModelFANUC ARCMATE 100iB
Year2003
ConditionUsed
Stock Number104209
