LINCOLN SYSTEM 55 WITH FANUC M710iC/20L TORCH CUTTING CELL WITH DUAL ROLL IN ROLL OUT TABLES

Sold

LINCOLN SYSTEM 55 WITH FANUC M710iC/20L TORCH CUTTING CELL WITH DUAL ROLL IN ROLL OUT TABLES

Available quantity: 1

Imlay City, MI

Description

1-USED LINCOLN 55 TORCH CUTTING CELL WITH FANUC M710iC/20L ROBOT & TWO ROLL IN ROLL OUT

WORK TABLES.

ROBOT SERIAL NUMBER

DATE OF MFG.

STK#104279

========================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

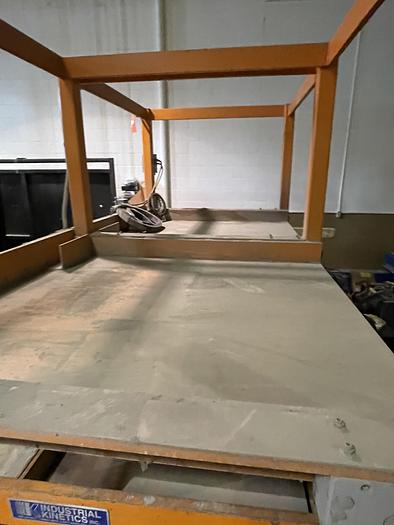

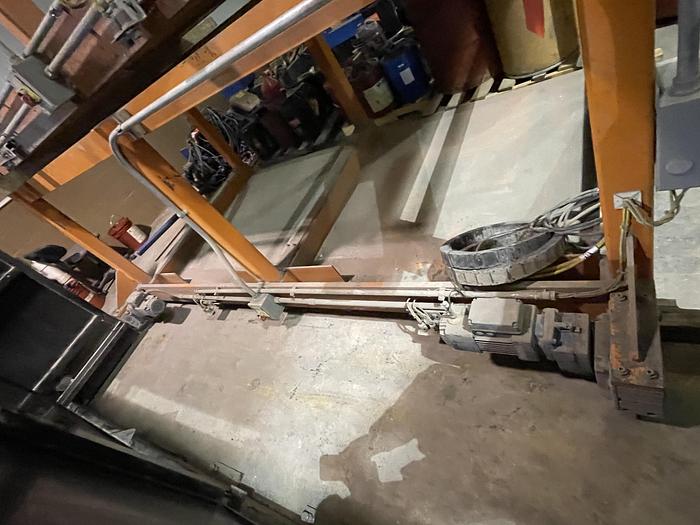

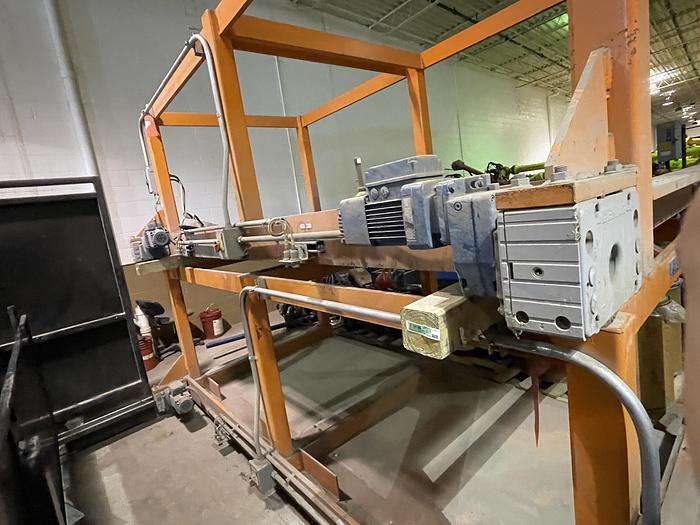

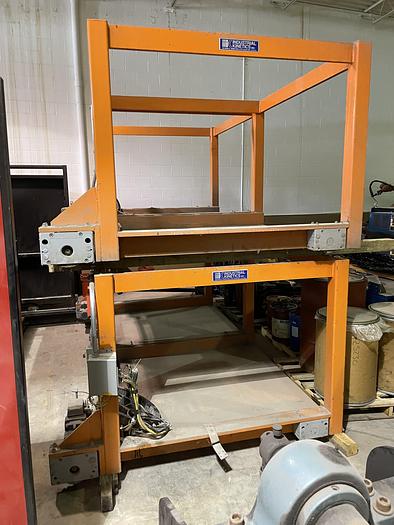

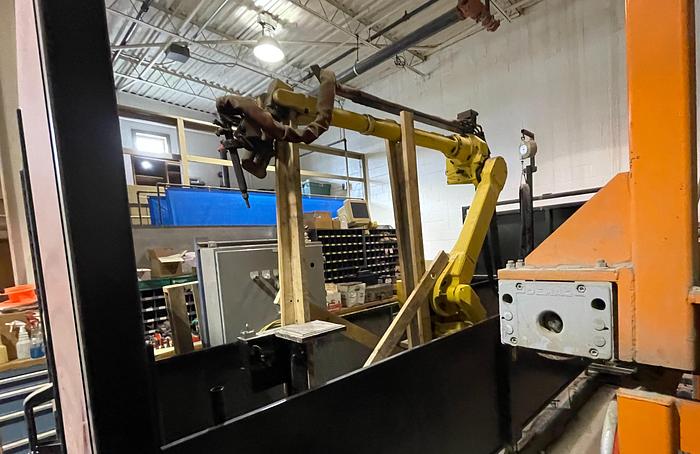

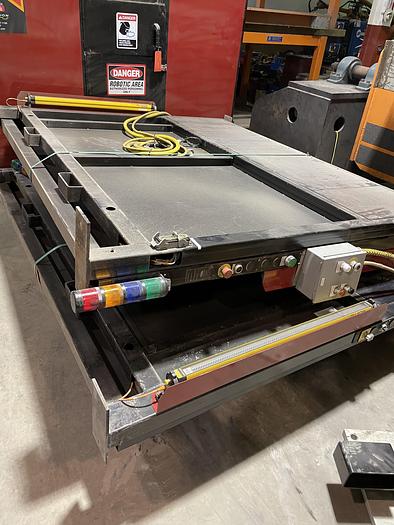

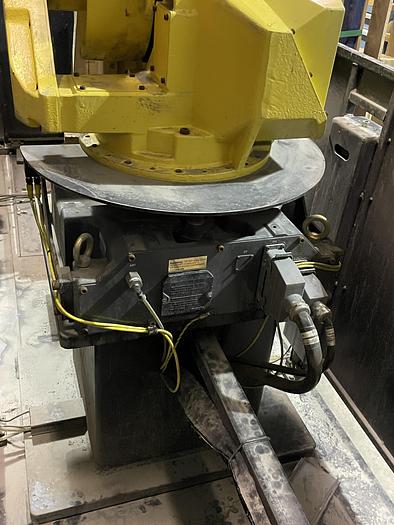

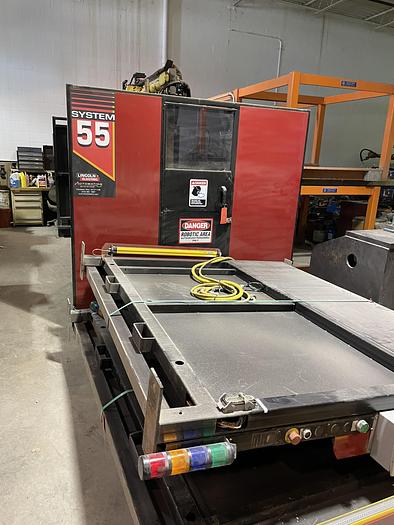

THIS CELL IS SET UP WITH ROBOT HAVING AN ACETYLENE TORCH GUN ON END OF ARM. THERE ARE TWO

TABLES TO ROLL WORK IN AND AWAY FROM THE ROBOT. SEE PHOTOS FOR DETAILS.

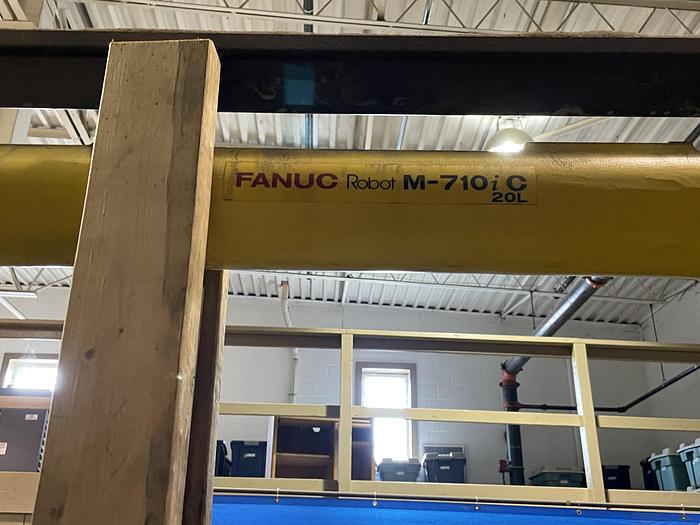

This Fanuc Robot is Designed for long reach handling applications, the FANUC M-710iC/20L features six axes and high-speed performance. Serial link construction simplifies installation and maximizes reach and reliability. Extremely fast axes and an extra-large work envelope help the M710iC/20L R30iA move parts around fast. With a reach around 2582mm, this robot can provide a pretty hefty work envelope with high speeds on the J4 and J6 axis.


Robot Specifications:

Axes: 6

Payload: 20.00 kg

H-Reach: 3110.00 mm

Repeatability: ±0.1500 mm

Robot Mass: 540.00 kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 175 °/s (3.05 rad/s)

J2 175 °/s (3.05 rad/s)

J3 180 °/s (3.14 rad/s)

J4 350 °/s (6.11 rad/s)

J5 360 °/s (6.28 rad/s)

J6 600 °/s (10.47 rad/s)


Robot Motion Range:

J1 ±360°

J2 ±225°

J3 ±432°

J4 ±400°

J5 ±280°

J6 ±360°


Robot Uses:

Waterjet Robots

Dispensing Robots

Machine Loading Robots

Material Handling Robots

Packaging Robots

Palletizing Robots

Part Transfer Robots

Material Removal Robots

Arc Welding Robots

Fiberglass Cutting Robots


EQUIPPED WITH:

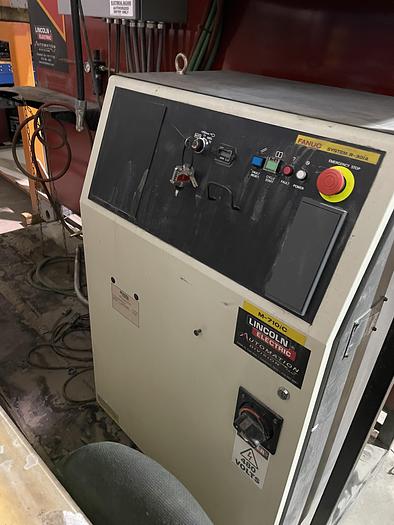

FANUC R30iA CONTROLLER

FANUC CONNECTION CABLES

FANUC TEACH PENDANT

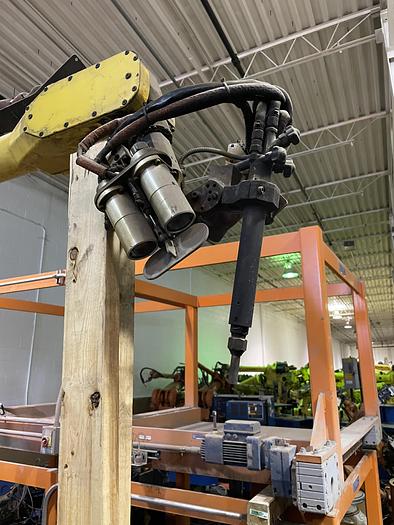

TORCH GUN WITH VISION


FOB TRUCK, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC M710iC/20L
Year2012
ConditionUsed
Stock Number104279
Axes6
Payload20.00 kg
H-Reach3110.00 mm
Repeatability±0.1500 mm
Robot Mass540.00 kg
StructureArticulated
MountingFloor, Inverted, Angle
