FANUC M-20iD/12L Robot, R-30iB Mate Plus Controller, Un-Used, 2025

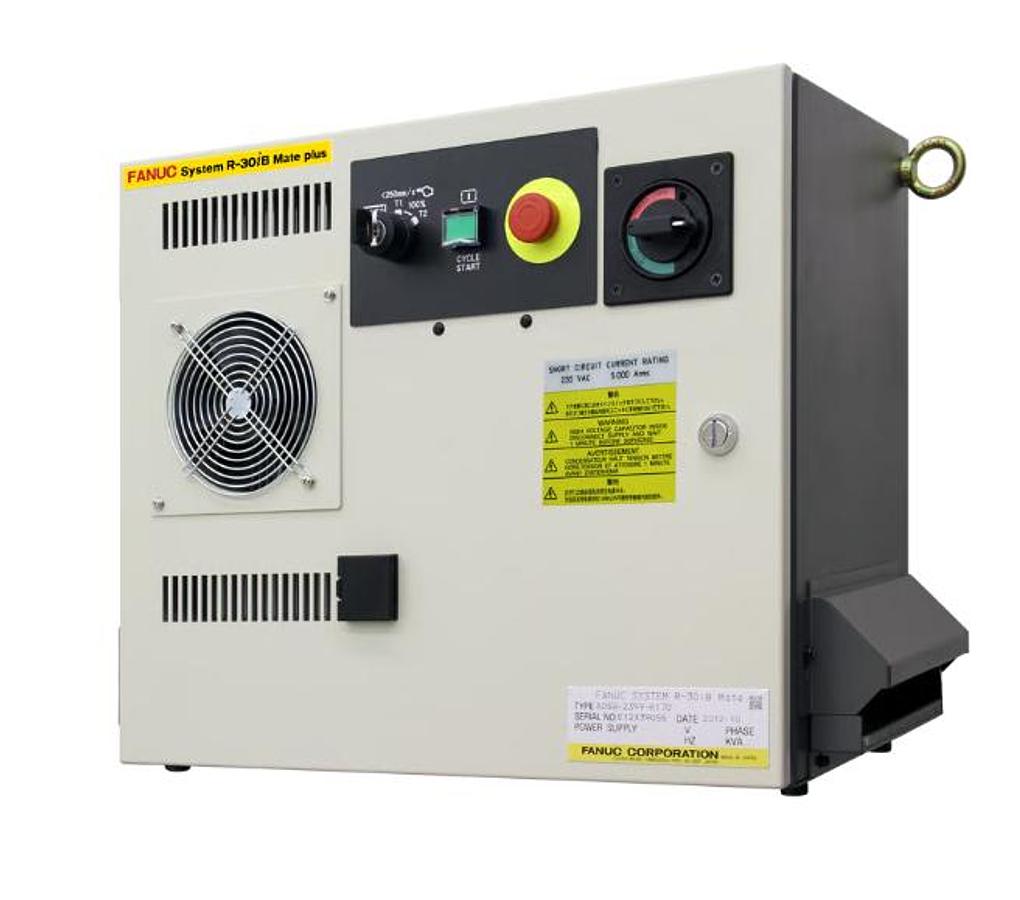

This un-used FANUC M-20iD/35 (2025) is a robot available from R.A.B. Industries. It is equipped with the R-30iB Plus controller,

teach pendant, and cables.

This robot makes for an excellent material handling robot, arc welding robot, adhesive dispensing robot, inspection robot, packaging

robot, assembly robot, and will work well for any application that demands a super long reach, high motion speeds, and excellent path

accuracy. This is the longest reach variant robot of the FANUC M-20iD family.

This robot is mechanically identical to an Arcmate 120iD/12L and can function as one with a simple software change.

When you buy a FANUC Robot from R.A.B. Industries, you will get fully relicensed software with your choice of

software options, and 24/7 technical support from FANUC America for the life of the robot!

1-NEVER IN PRODUCTION FANUC M-20iD/12L ROBOT WITH R-30iB MATE PLUS CONTROLLER

DATE OF MFG. 2025

STK#105516

======================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED

RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE

AND TO VERIFICATION BY BUYER:

Payload: 12KG

Repeatability: +/- 0.03 mm

Mechanical unit weight: 250 kg

Reach: 2272 mm

Motion Ranges:

J1: 370° or 340°

J2: 260°

J3: 458°

J4: 400°

J5: 360°

J6: 900°

Maximum Axis Speeds:

J1: 210 °/s

J2: 210 °/s

J3: 265 °/s

J4: 420 °/s

J5: 420 °/s

J6: 720 °/s

The highly versatile robot can handle large parts thanks to its very long horizontal stroke. To further maximize flexibility and open up a

new range of manufacturing possibilities, it can also carry additional tools weighing up to 12 kg. This robot is mechanically identical to

an Arcmate 120iD/12L and can function as one with a simple software change.
