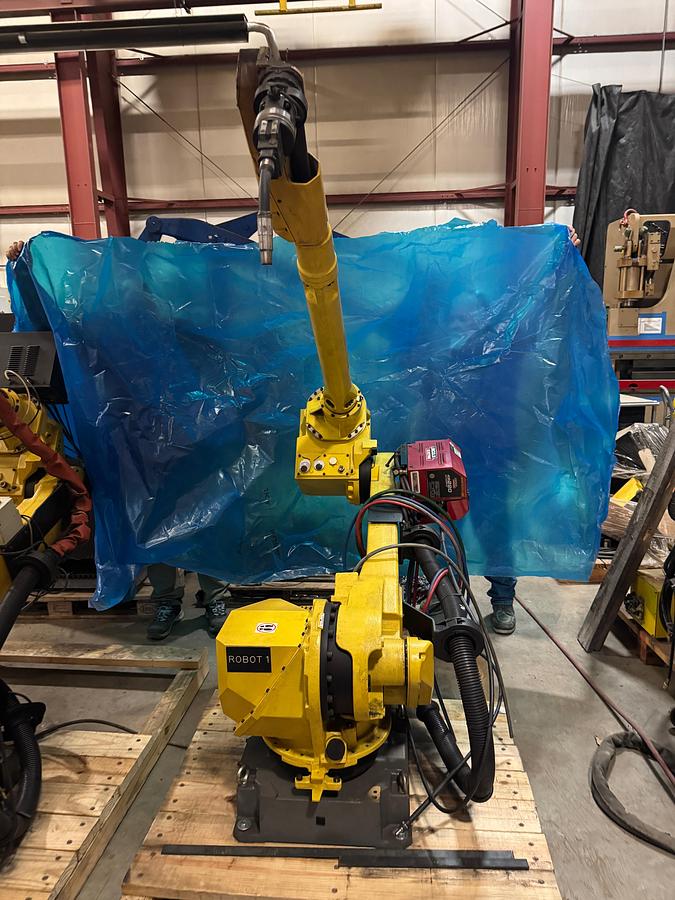

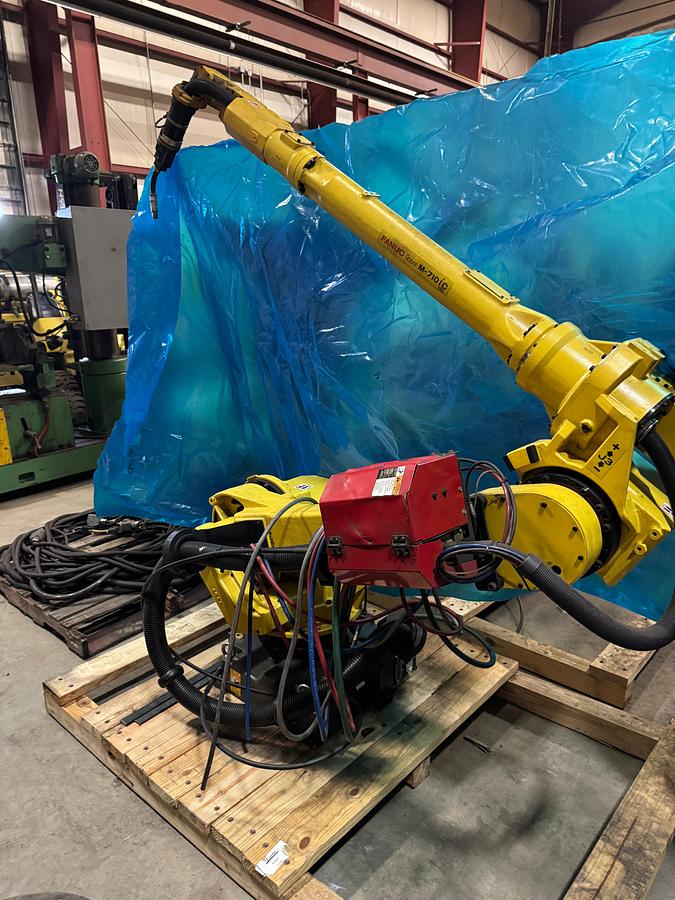

Fanuc M-710iC/12L 6 Axis 3 Meter Reach Mig Welding Robot With R-30iB Plus Control

RAB Industries is pleased to offer this used Fanuc M-710iC/12L robot new in (2017) Very Clean, With R-30iB Plus Controller, EE Connection all set and ready to go as a mig welding robot, 12 kg payload and a reach of 3,123 mm

1-Used Fanuc M-710iC/12L 6 Axis Mig Welding Robot With R-30iB Plus Control

Serial Number F209615

Date of Mfg. 09/2017

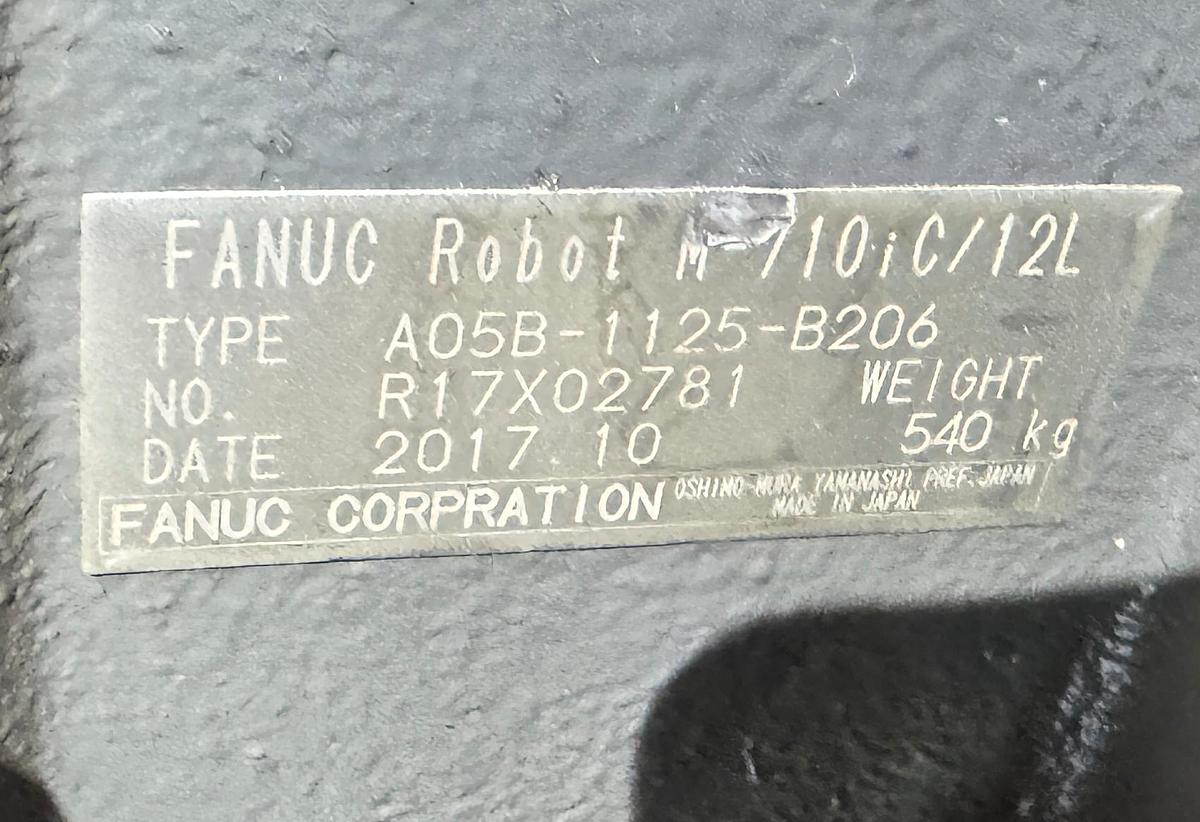

Mechanical Arm Type #A05B-1125-B206

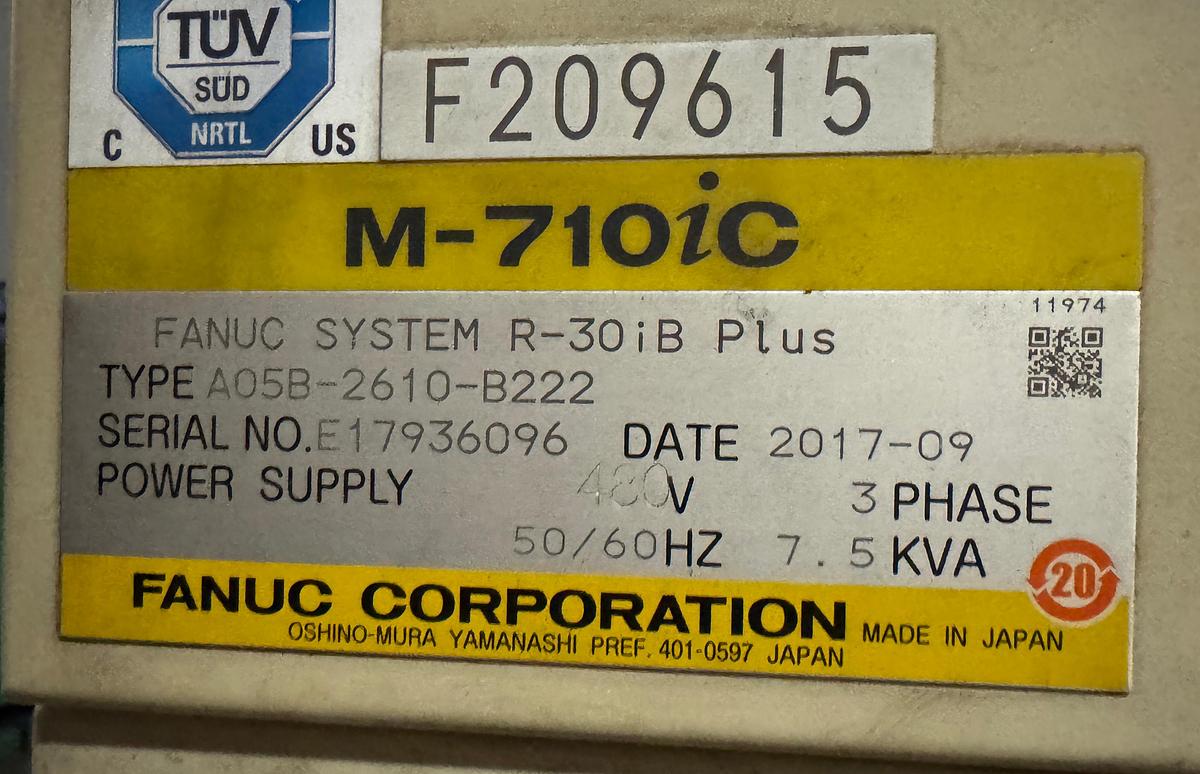

Control Unit Type #A05B-2610-B222

Stk#105557

=================================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:

The Fanuc M-710iC/12L is a long reach version in the series with a reach of 3123mm it has a large working envelope and has a capacity of 12kg. The robot runs on the Fanuc R-30iB & R-30iB Plus Controller Platform. It can be used in wide variety of applications from material handling to welding applications and machine tending applications. The M-710iC series of robot is a very popular robot for Fanuc and hard to find used.

Robot Specifications:

Axes: 6

Payload: 12kg

H-Reach: 3123mm

Repeatability: ±0.15mm

Robot Mass: 540kg

Structure: Articulated

Mounting: Floor

Robot Motion Speed:

J1 180 °/s (3.14 rad/s)

J2 180 °/s (3.14 rad/s)

J3 180 °/s (3.14 rad/s)

J4 400 °/s (6.98 rad/s)

J5 430 °/s (7.5 rad/s)

J6 630 °/s (11 rad/s)

Robot Motion Range:

J1 ±360°

J2 ±225°

J3 ±434°

J4 ±400°

J5 ±380°

J6 ±720°

Applications:

Assembly Robots

Dispensing Robots

Machine Loading Robots

Machine Tending Robots

Material Handling Robots

Packaging Robots

Part Transfer Robots

Pick and Place Robots

Order Picking Robots

Equipped With:

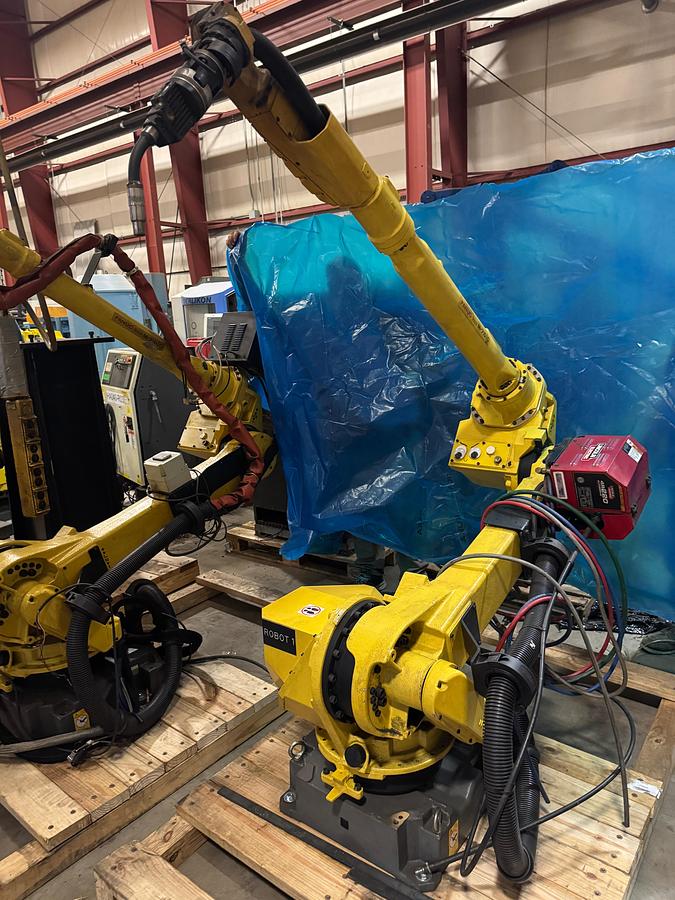

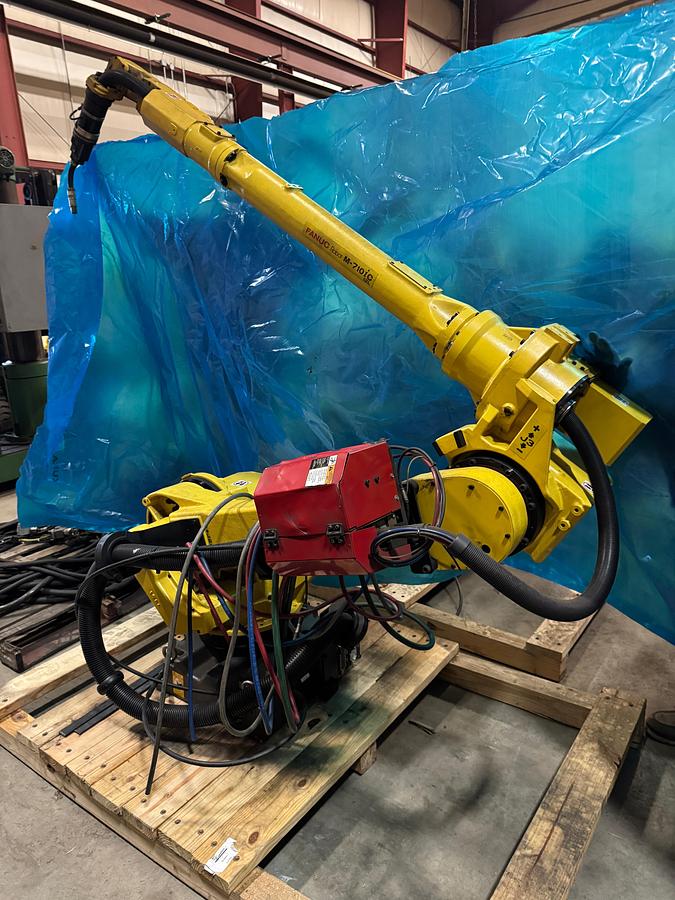

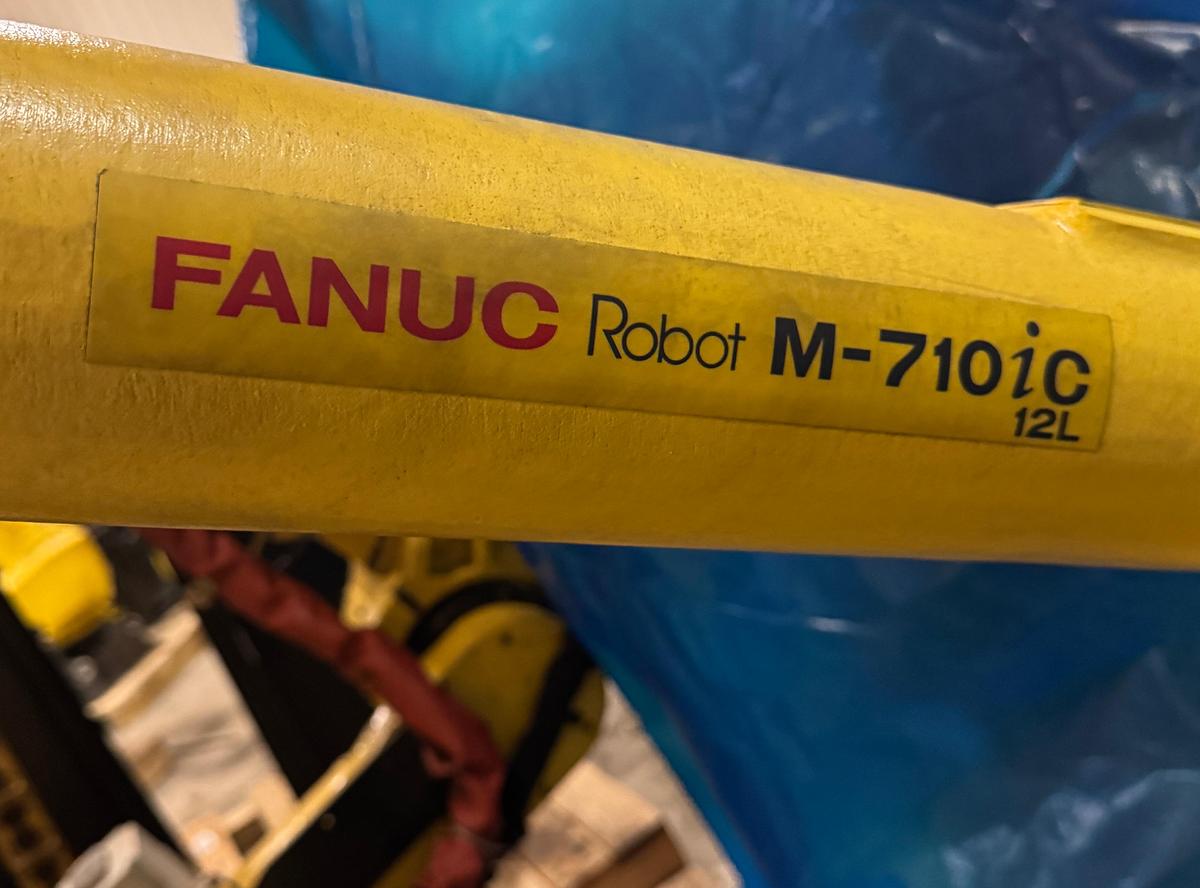

Fanuc Mechanical Unit M-710iC/12L

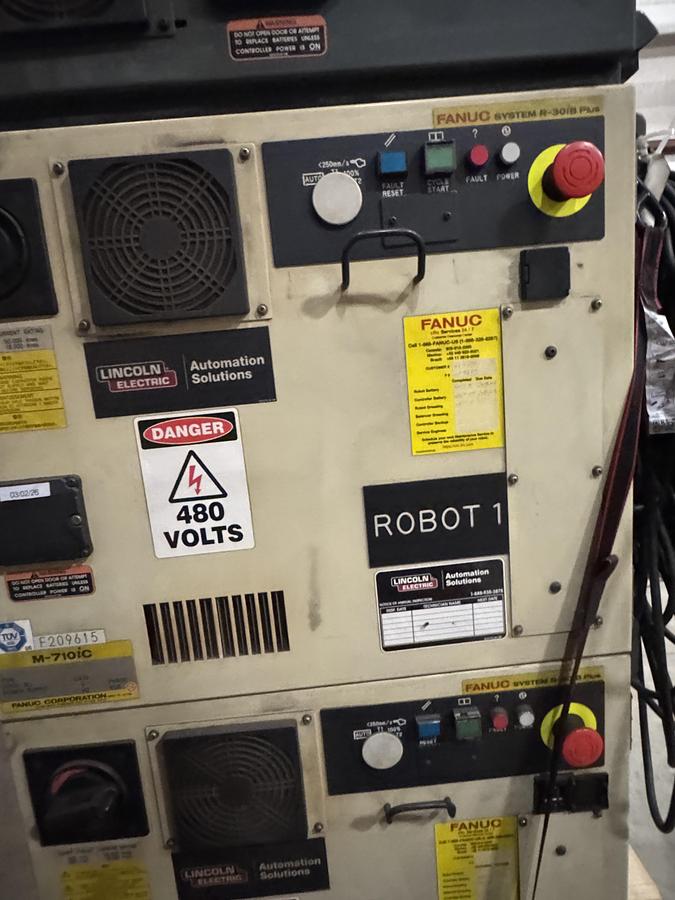

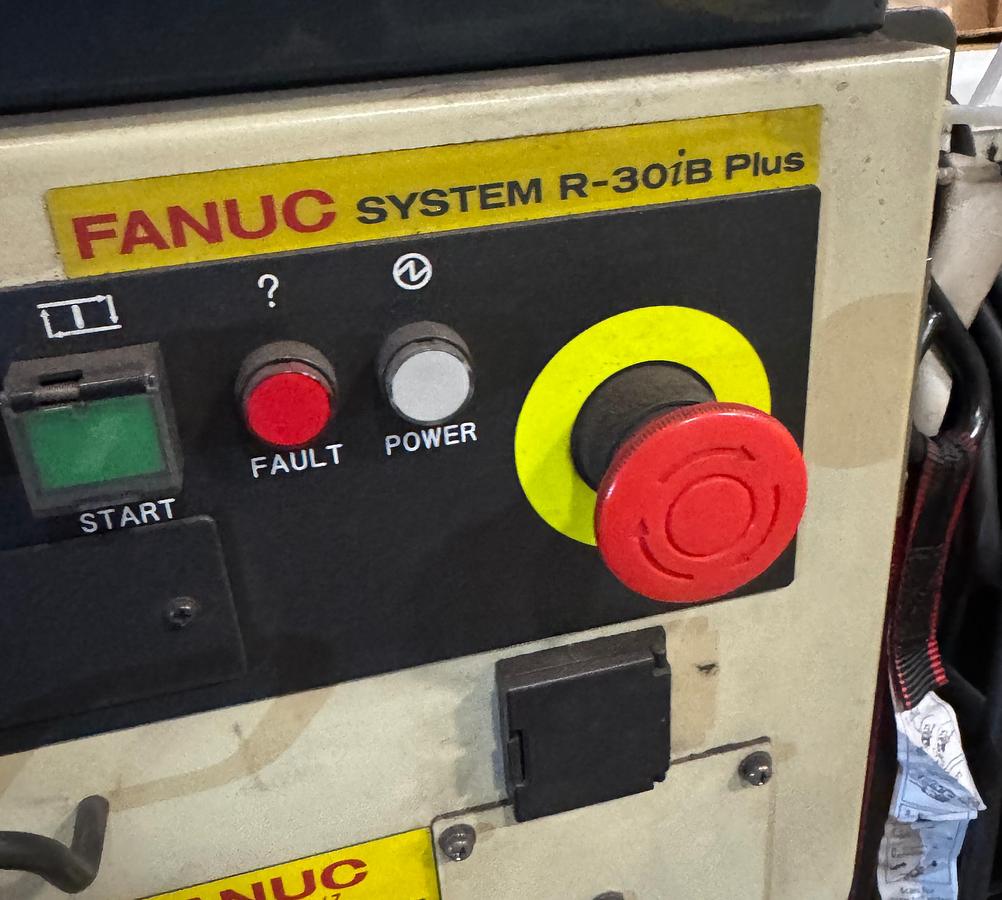

Fanuc Robot Controller R-30iB Plus

Fanuc Robot Connection Cables

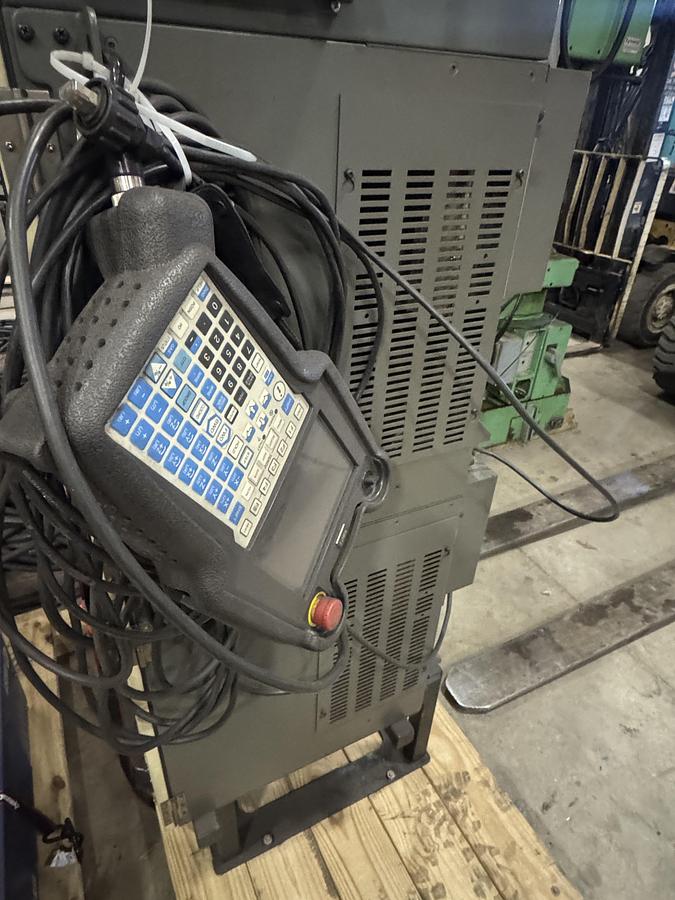

Fanuc Color Teach Pendant

Fanuc Teach Pendant Cable

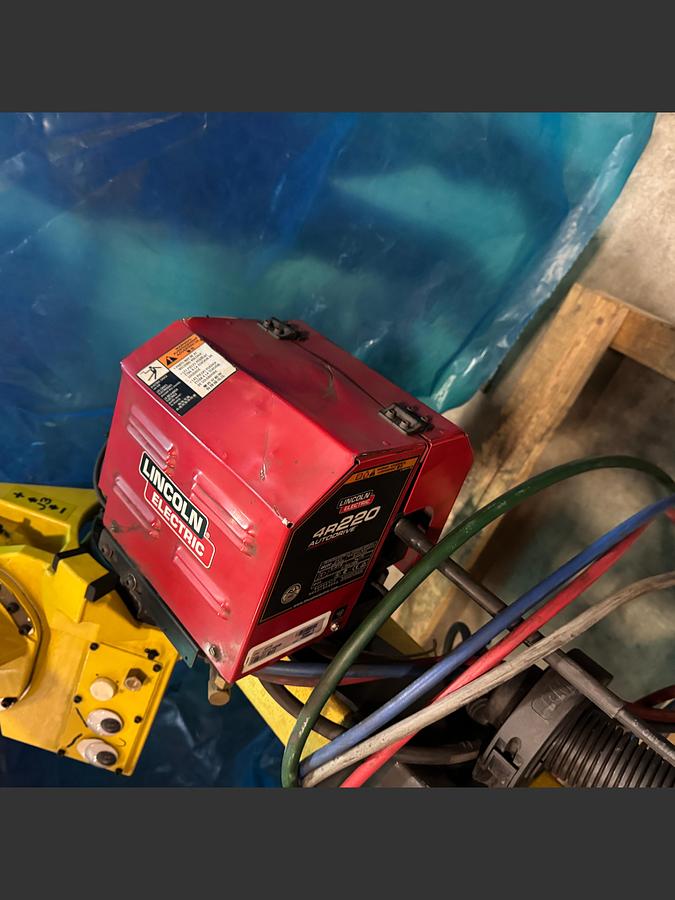

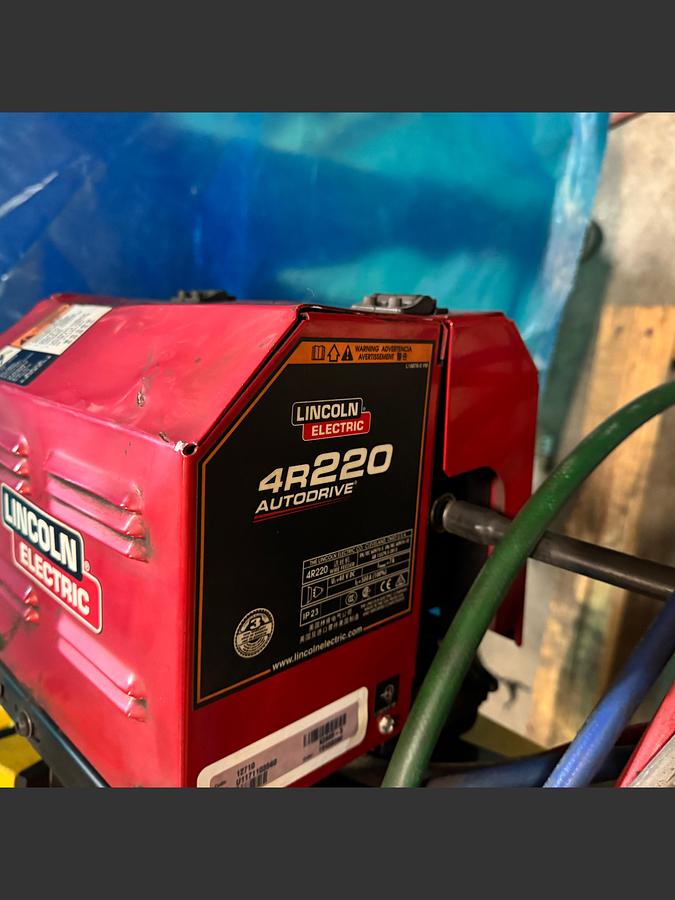

Lincoln Electric 4R220 Auto Drive Wire Feeder

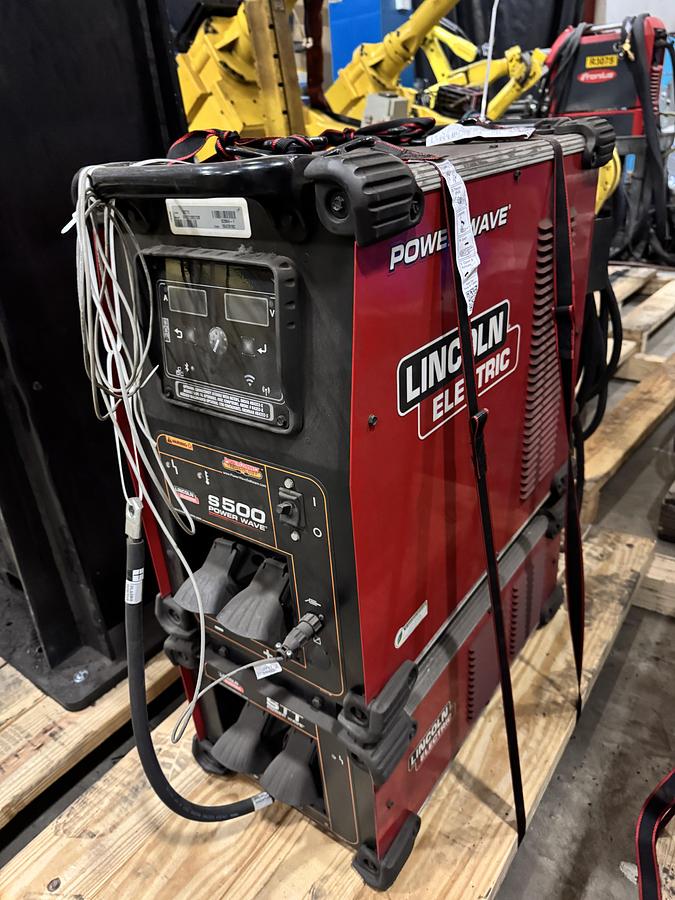

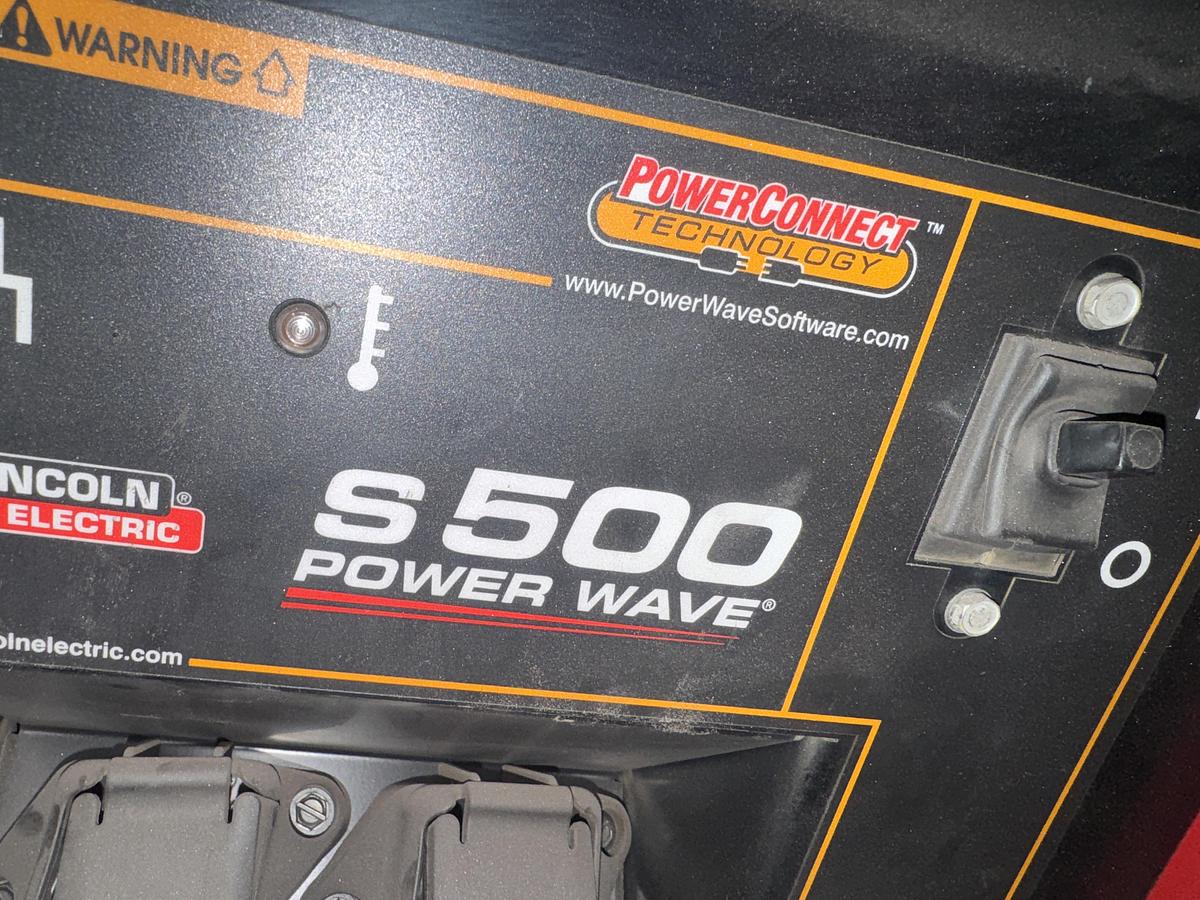

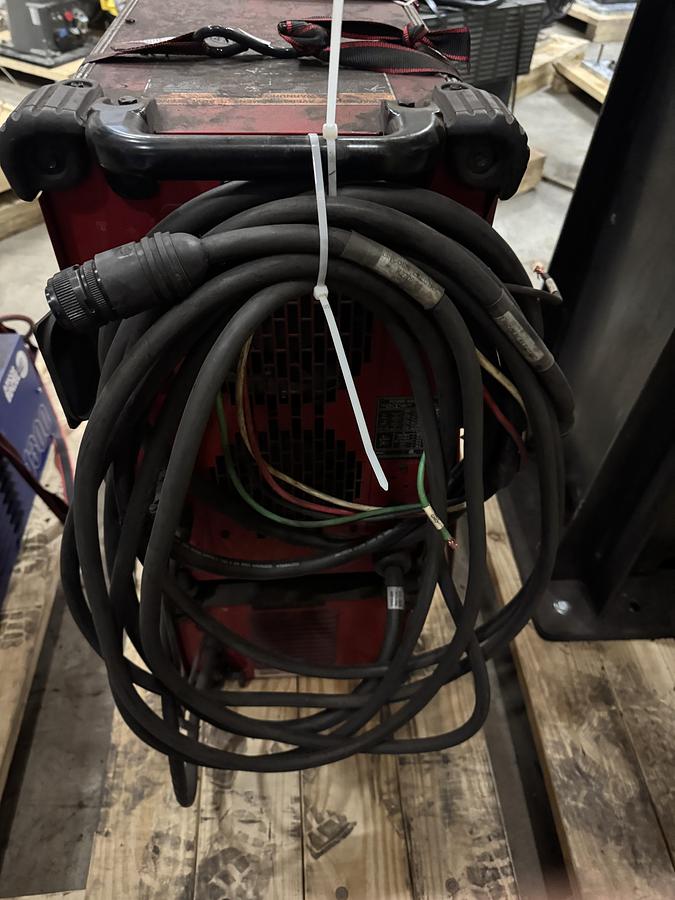

Lincoln Electric S500 Welding Power Supply

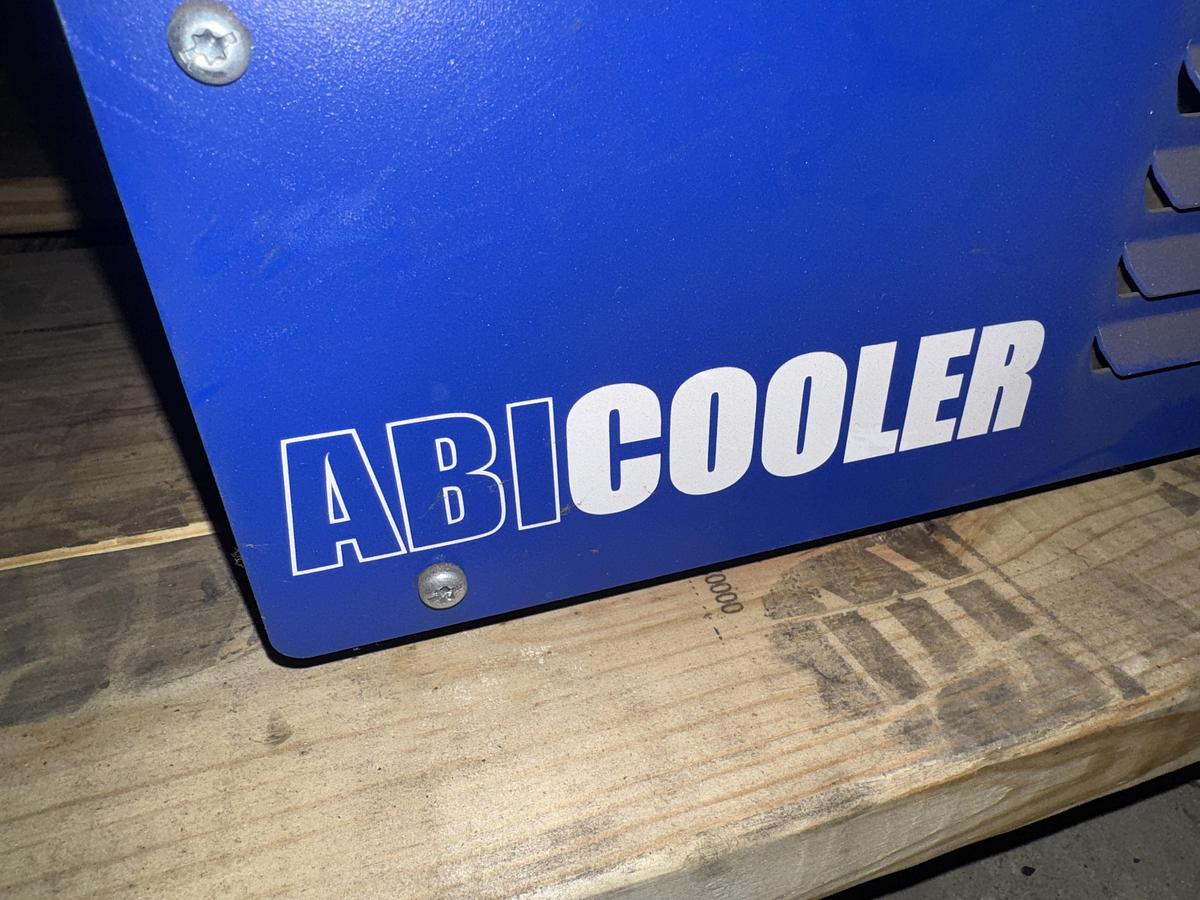

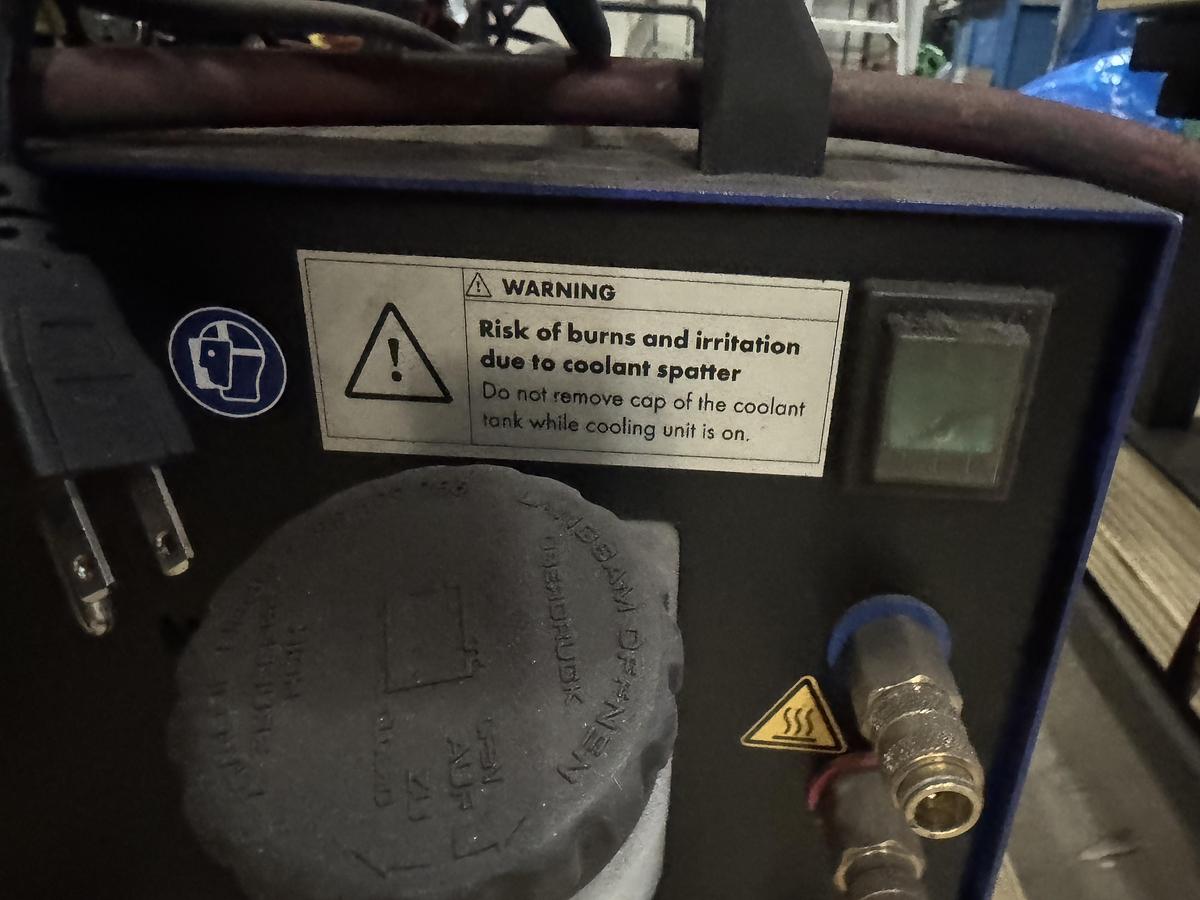

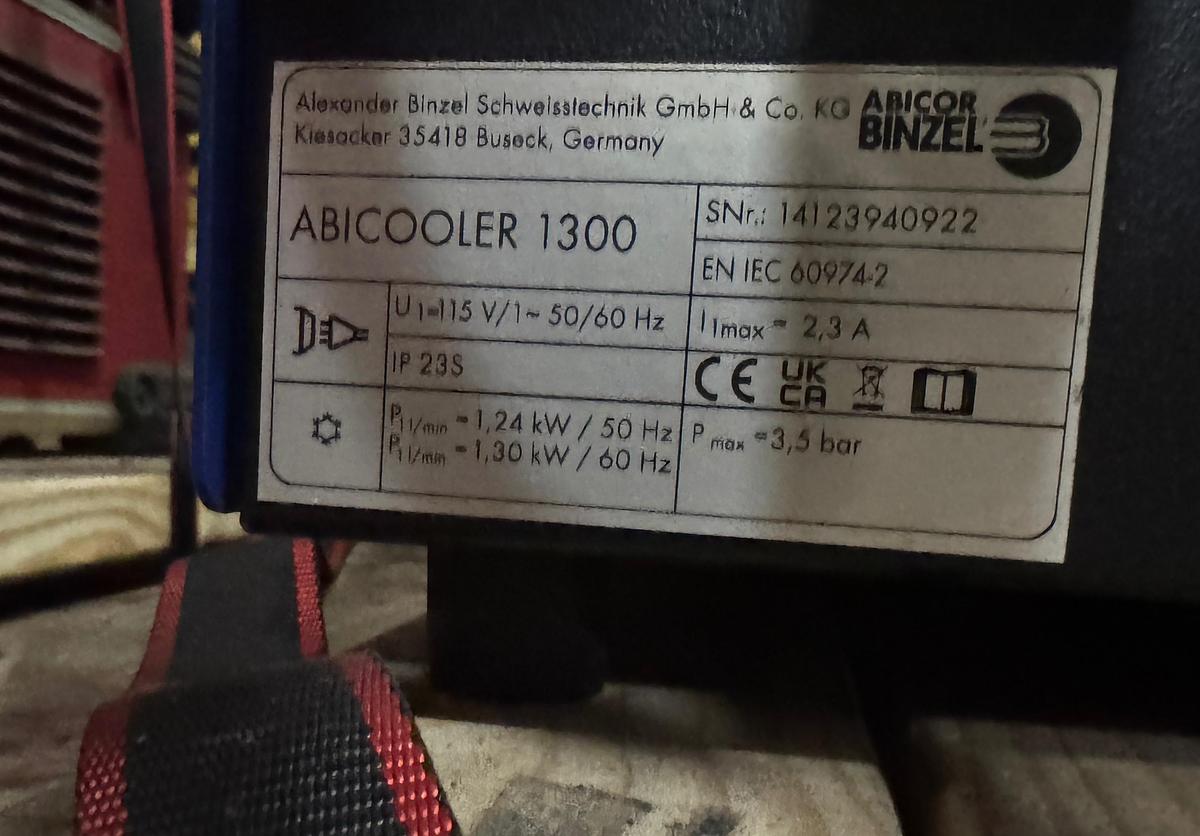

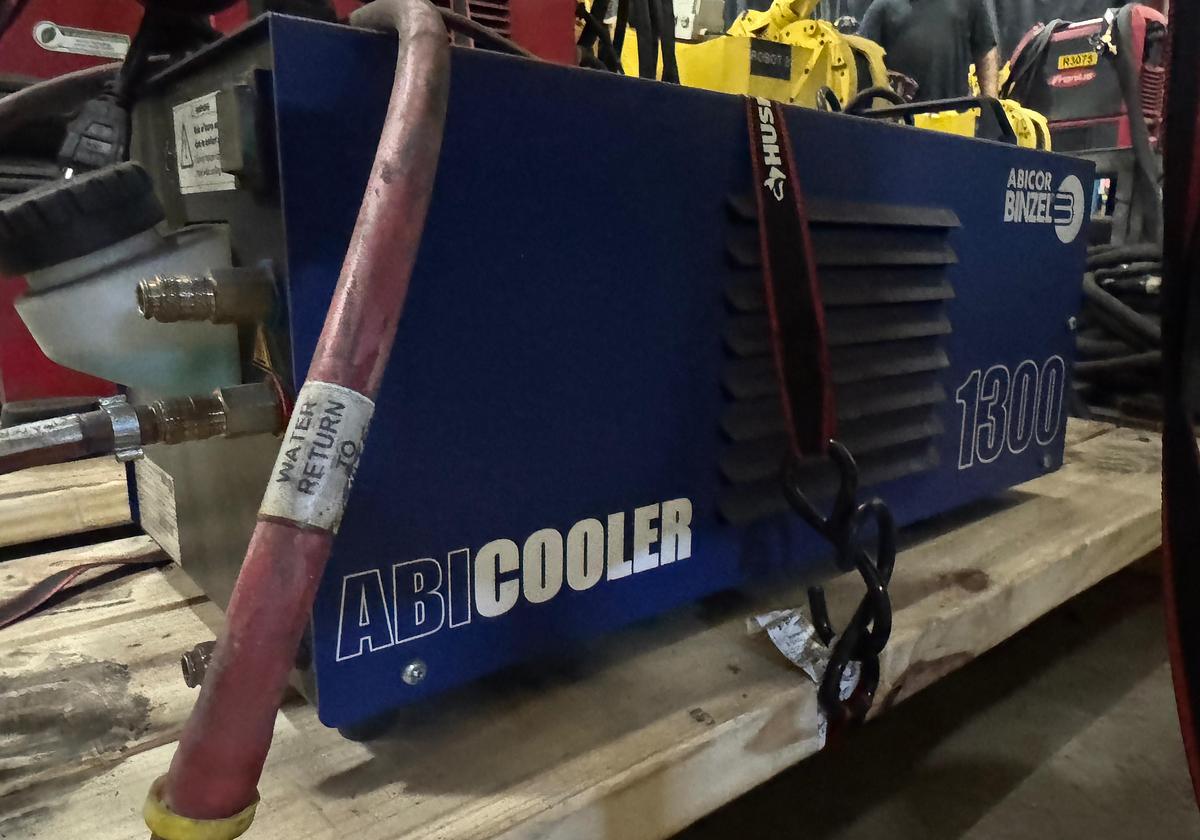

ABI Cooler Model 1300 S/N 14123940922

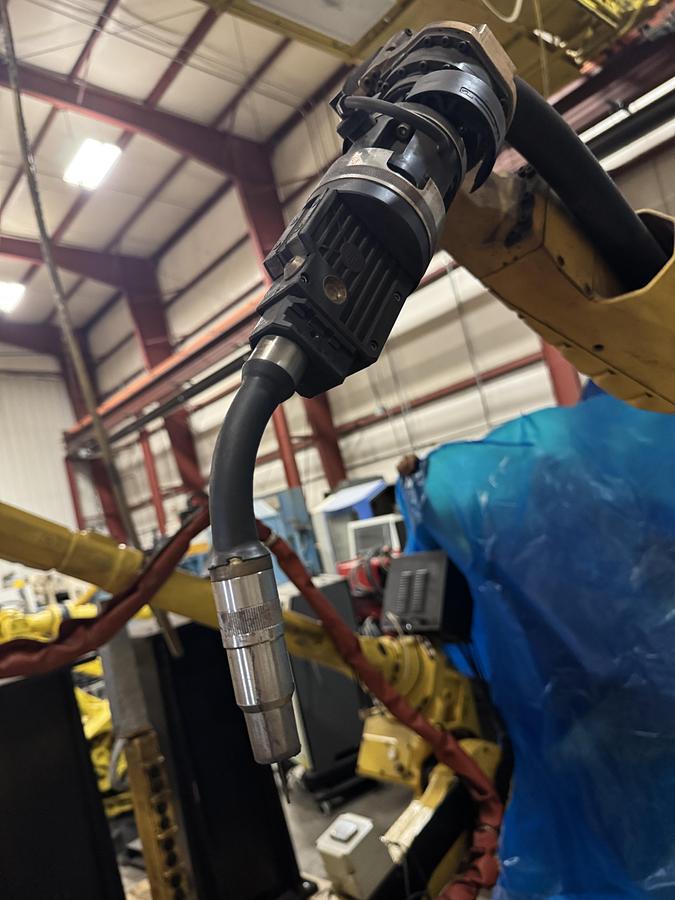

Binzel Torch Gun

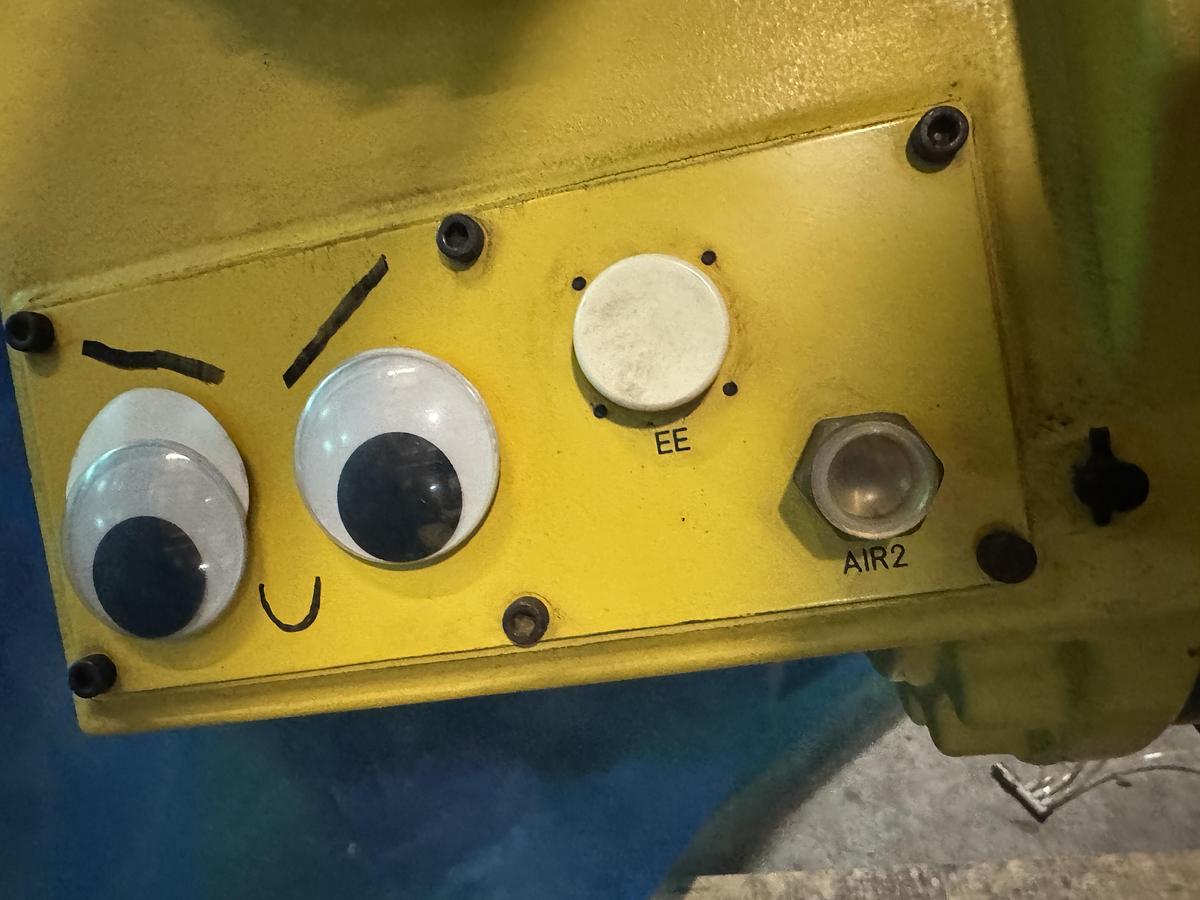

EE Connection

Air Connection

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.
