Payload 210 kg Reach 3100 mm

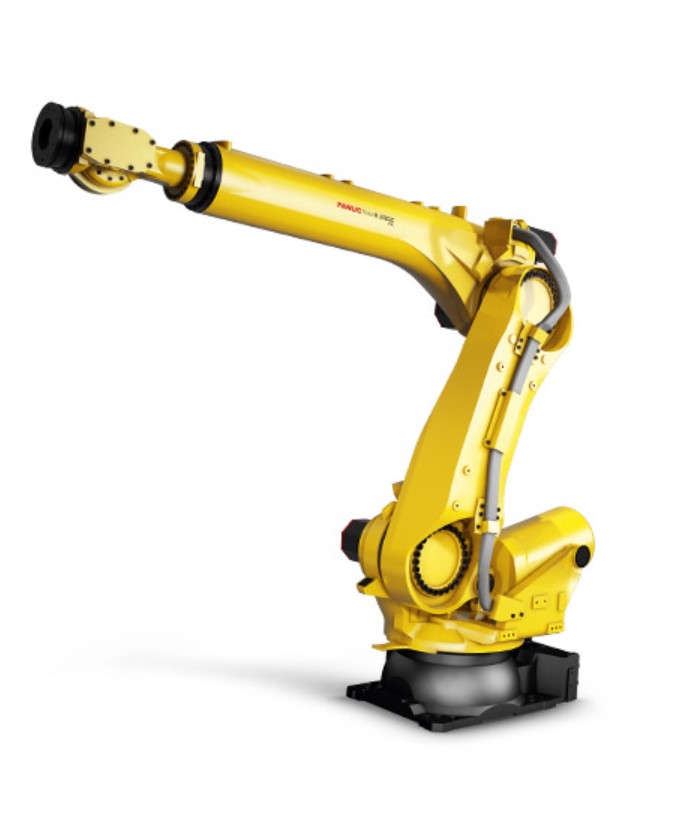

The Fanuc R-2000iC/210L industrial robot runs on the Fanuc R-30iB Controller platform is the successor to the Fanuc R-2000iB/185L. Lifting an additional 25 kg, the robot also offers improved rigidity, enhanced wrist load moment and inertia. The R-2000iC/210L is ideally suited to automotive applications such as spot welding. Its relatively small footprint means it easily fits into crowded factory environments.
Primary Applications:
Assembly Robots
Spot Welding Robots
Packaging Robots
Machine Tending Robots
Dispensing Robots

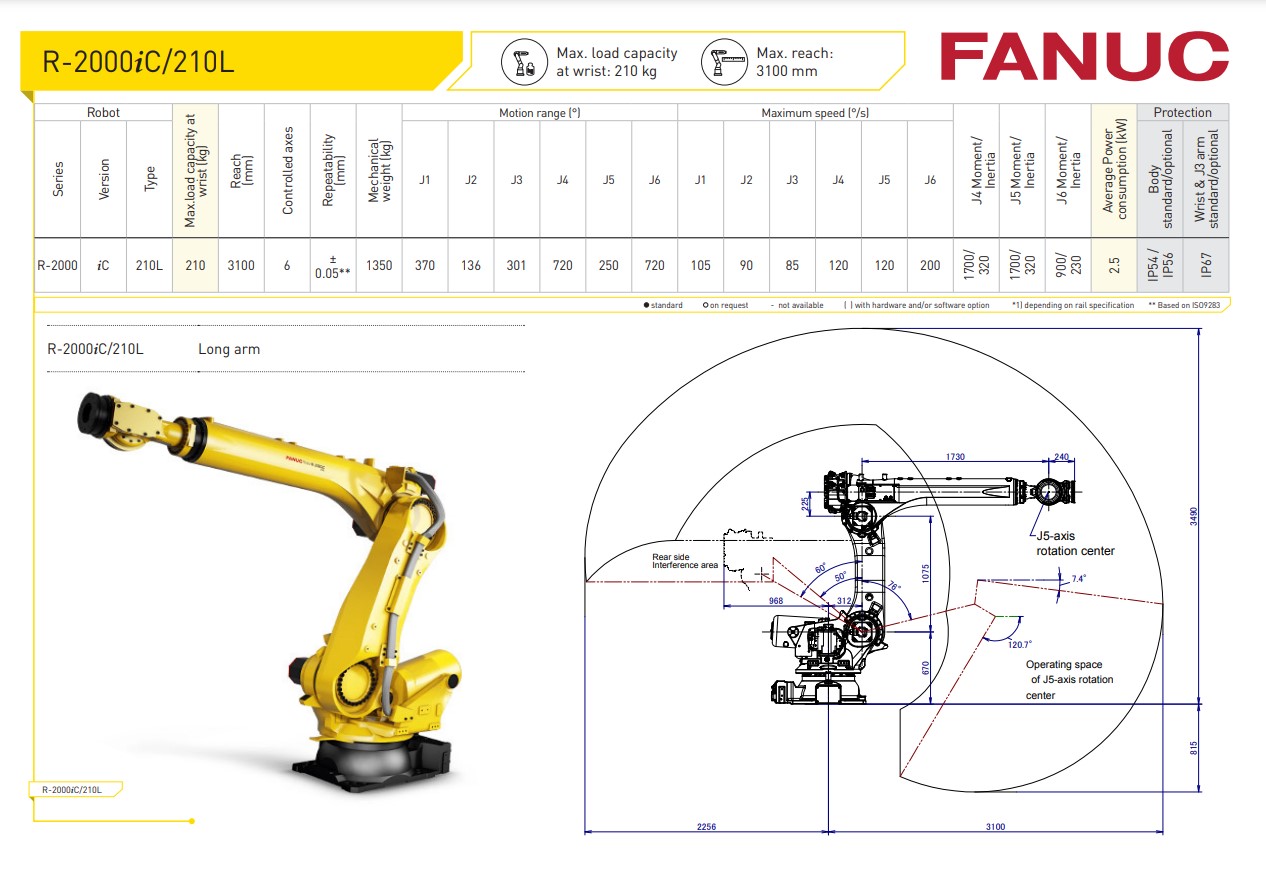

ROBOT SPECIFICATIONS:
PAYLOAD 210 kg
REACH 3100 mm
AXES 6
REPEATABILITY 0.2 mm
MASS 1350 kg
STRUCTURE Articulated
MOUNTING Floor
ROBOT MOTION SPEED:
J1 105 °/s (1.83 rad/s)
J2 90 °/s (1.57 rad/s)
J3 85 °/s (1.48 rad/s)
J4 120 °/s (2.09 rad/s)
J5 120 °/s (2.09 rad/s)
J6 200 °/s (3.49 rad/s)
ROBOT MOTION RANGE:
J1 ±370°
J2 ±136°
J3 ±301°
J4 ±720°
J5 ±250°
J6 ±720°
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
