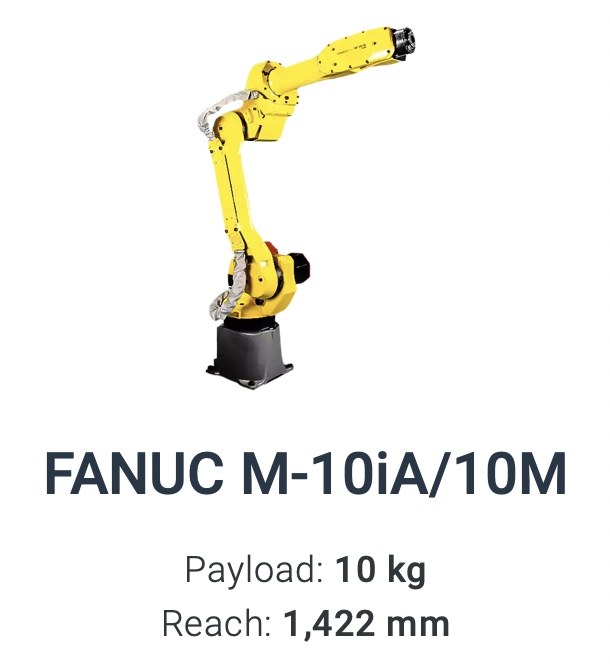

The FANUC M-10iA/10M has a wrist with a small radius of 110mm, which allows it to fit into more confined spaces. This robot is also paired with the R-30iB control.
Robot Specifications:
Axes: 6
Payload: 10kg
H-Reach: 1422mm
Repeatability: ±0.08mm
Robot Mass: 130kg
Structure: Articulated
Mounting: Floor
Robot Motion Speed:
J1 225 °/s (3.93 rad/s)
J2 205 °/s (3.58 rad/s)
J3 225 °/s (3.93 rad/s)
J4 420 °/s (7.33 rad/s)
J5 420 °/s (7.33 rad/s)
J6 700 °/s (12.22 rad/s)
Robot Motion Range:
J1 +340° - 360°
J2 ±250°
J3 ±445°
J4 ±400°
J5 ±280°
J6 ±720°
Applications:
Material Handling Robots
Order Picking Robots
Pick and Place Robots
Machine Tending Robots
Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
Looking for a FANUC M-10iA/10M? See the M-10iA/10MS robots we have in stock, or browse all of our used FANUC robots. For more on picking the right robot, read our FANUC M-10 and M-16 series guide and our guide to FANUC controllers.
