ARCMATE M50iB 6 AXIS MIG WELDING ROBOT WITH RJ3IB CONTROLLER

ARCMATE M50iB 6 AXIS MIG WELDING ROBOT WITH RJ3IB CONTROLLER

$7,500 (USD)

Location:Imlay City, MI

Available quantity:1

orCall 586-752-0090 Extension 1 for Sales

Description

1-USED FANUC ARCMATE 50iB 6 AXIS MIG WELDING ROBOT WITH RJ3iB CONTROLLER

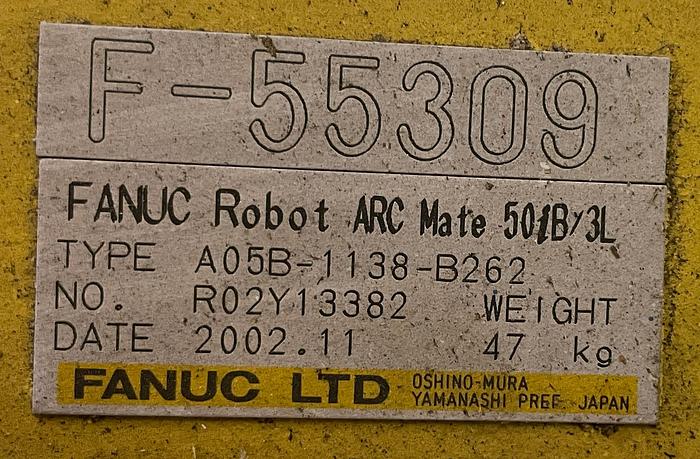

SERIAL NUMBER F55309

DATE OF MFG 11/2002

STK#104781

===============================

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT TO CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER:


This FANUC ARC Mate 50iB is a six-axis robot engineered to offer versatility in a simple package. A tabletop welder with a low 47kg mass, the ARC Mate 50iB RJ-3iB is designed to perform high-speed arc welding applications. The 50-iB RJ3iB is a highly flexible automated robot that mounts to any surface – the floor, ceiling or at an angle. This plasma welding robotic arm is electric servo-driven for maximum performance during smaller applications. Additionally, the ARC Mate 50iB’s compact body takes space efficiency to new levels. This mini is fast and reliable, offering a horizontal reach of 856mm, allowing it to reach confined spaces easily.


Robot Specifications:

Axes: 6

Payload: 3kg

H-Reach: 856mm

Repeatability: ±0.04mm

Robot Mass: 47kg

Structure: Articulated

Mounting: Floor, Inverted, Angle


Robot Motion Speed:

J1 140 °/s (2.44 rad/s)

J2 150 °/s (2.62 rad/s)

J3 160 °/s (2.79 rad/s)

J4 400 °/s (6.98 rad/s)

J5 330 °/s (5.76 rad/s)

J6 480 °/s (8.38 rad/s)


Robot Motion Range:

J1 ±160°

J2 +150° - 35°

J3 +165° - 125°

J4 ±190°

J5 ±120°

J6 ±360°


Applications:

Arc Welding Robots

Welding Automation Robots

Sanding Robots

Grinding Robots

Shielded Metal Arc Welding Robots

Plasma Welding Robots

Plasma Cutting Robots

Laser Cutting Robots


Equipped with:

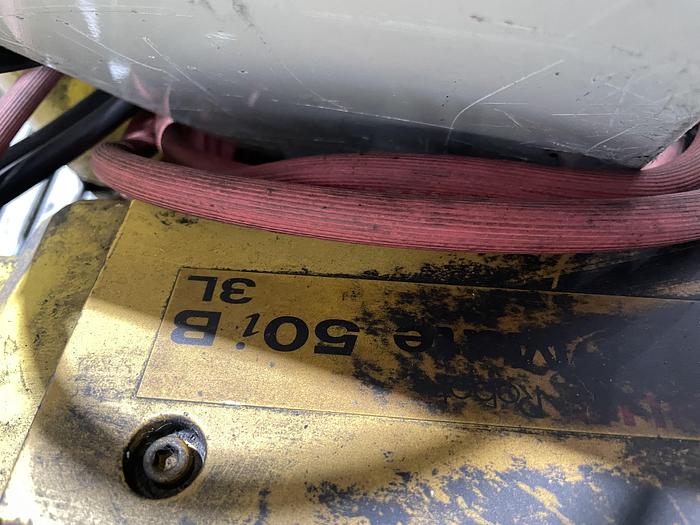

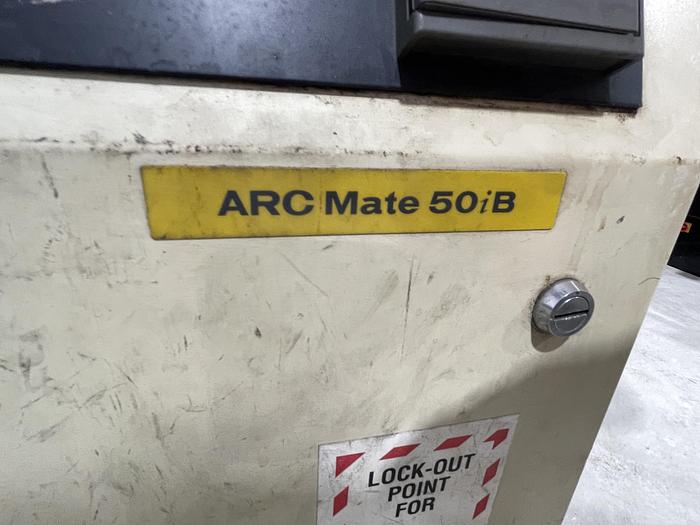

Fanuc Arcmate 50iB

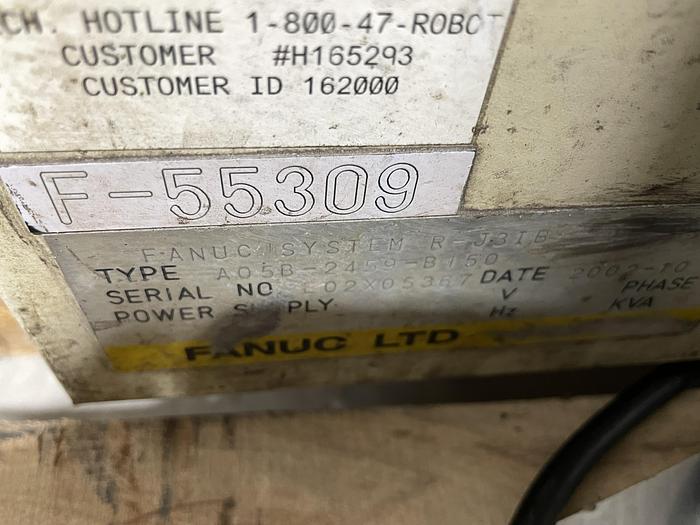

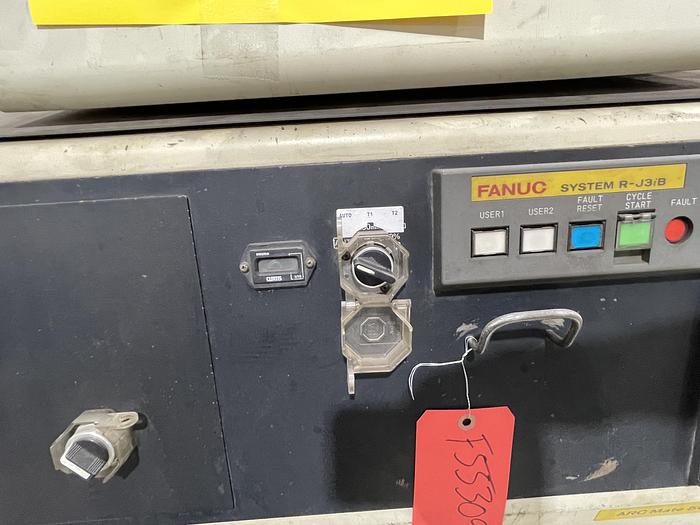

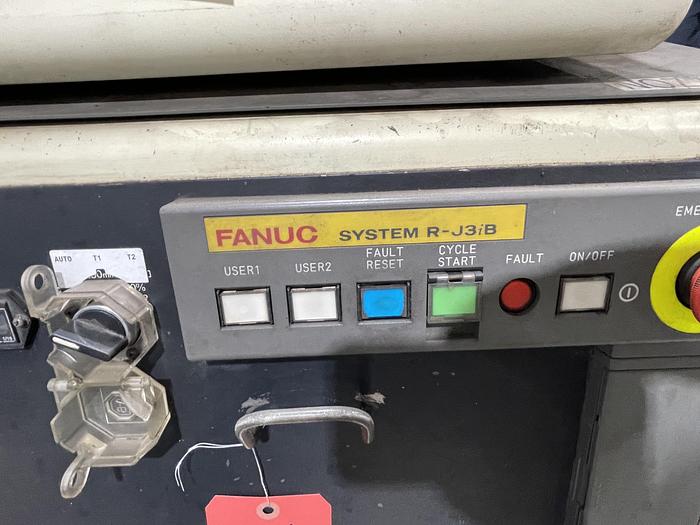

Fanuc RJ3iB Controller

Fanuc Robot RCC Cables

EE Connection

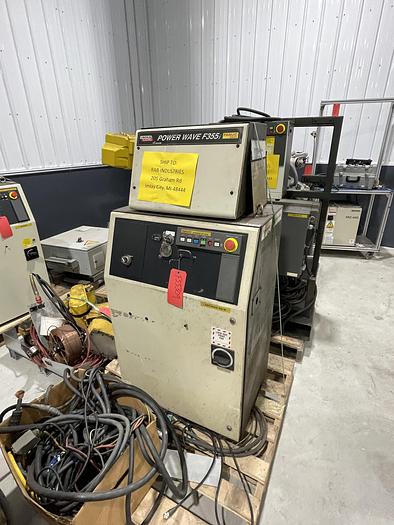

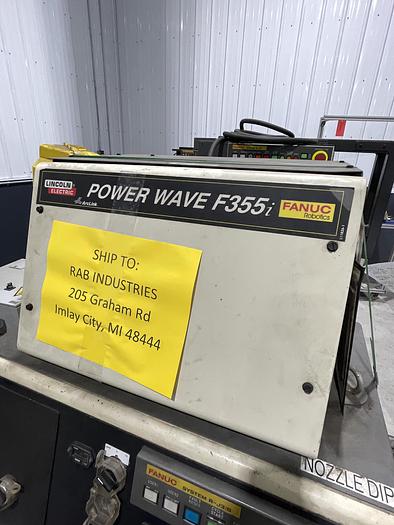

Lincoln Power wave F355i Mounted on Cabinet Mig welding power supply


FOB TRUCK, 205 GRAHAM ROAD, IMLAY CITY, MI 48444

THIS ITEM IS OFFERED FOR SALE SUBJECT TO PRIOR SALE AND BUYER'S UNCONDITIONAL ACCEPTANCE OF SELLERS TERMS AND CONDITIONS. RAB INDUSTRIES, INC.

Specifications

ManufacturerFANUC
ModelFANUC ARCMATE 50iB
Year2002
ConditionUsed
Serial NumberF55309
Stock Number104781
Axes6
ModelFANUC ARCMATE 50iB
Payload3kg
H-Reach856mm
Repeatability±0.04mm
Robot Mass47kg
StructureArticulated
MountingFloor, Inverted, Angle
ManufacturerFANUC
