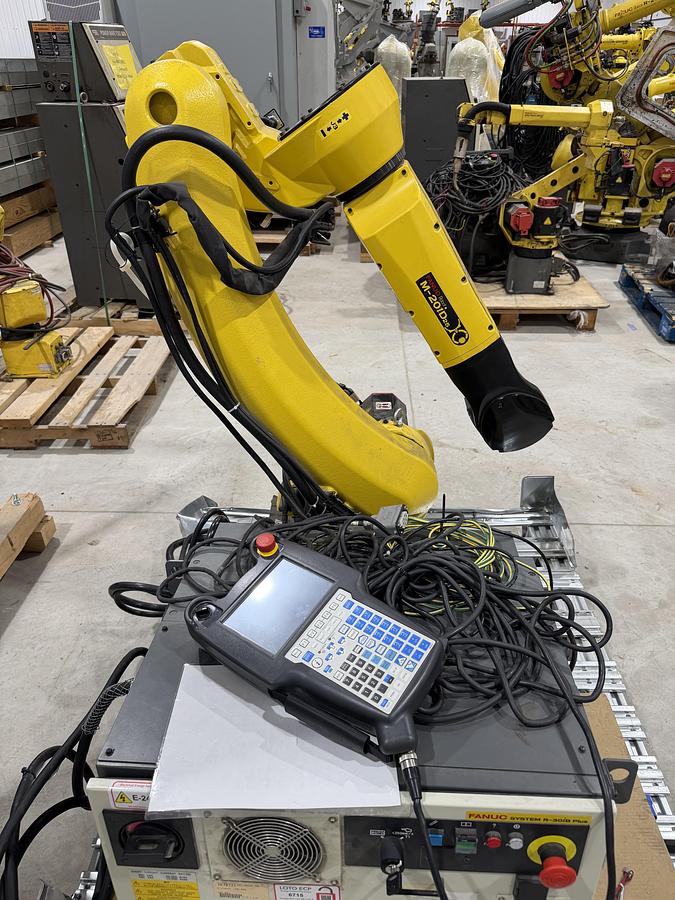

FANUC M-20iD/25 Robot, R-30iB Plus Control, 2021, Used

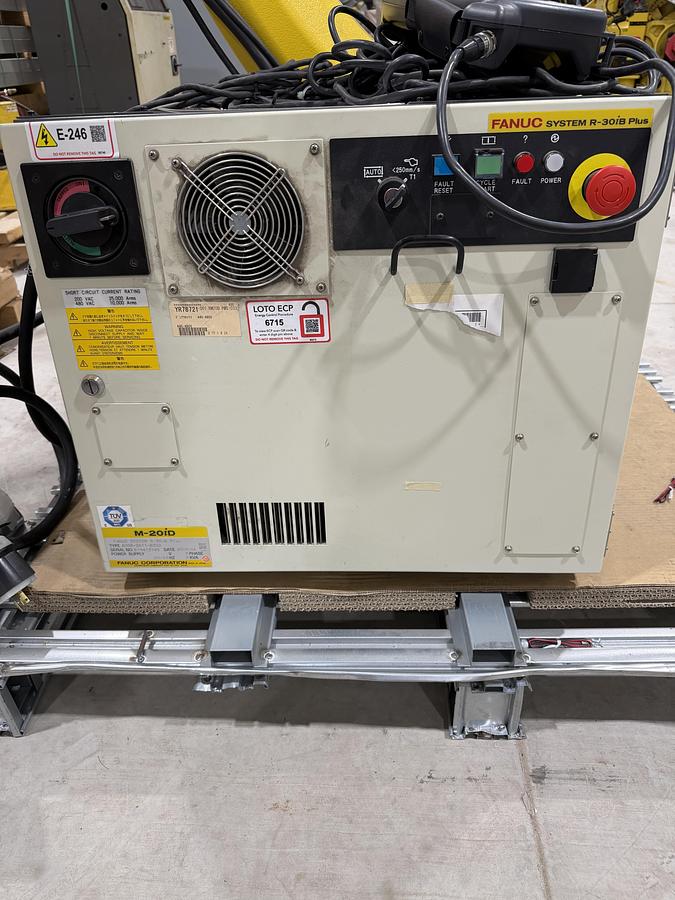

This used FANUC M-20iD/25 (2021) is a robot available from R.A.B. Industries. It is equipped with the R-30iB Plus controller, teach pendant, and cables. 1-NEVER USED FANUC M-20iD/25 ROBOT WITH R-30iB PLUS CONTROLLER, TEACH PENDANT, AND CABLES. HOURS: 6,482 MECHANICAL OPERATING HOURS ARM TYPE A05B-1228-B202 SERIAL NUMBER: DATE OF MFG. 2021 STK#105485 ======================================

The Fanuc M-20iD/25 Robot is the latest generation of the M-20 series robots. It features great axis speeds,

a thru-arm wrist design for easy hookup to your end of arm tooling, high precision motion performance, and

low power consumption. This is the reimagined version of the very popular Fanuc M-20iA series of robots.

These robots are excellent for a wide variety of applications, including arc welding, material handling, pick and

place, assembly, sorting, palletizing/depalletizing, waterjet cutting, and so much more. This robot can be paired

with the Fanuc R-30iB Plus controller in either the A cabinet size, or the R-30iB Mate Plus controller.

SPECIFICATIONS WHILE OBTAINED FROM SOURCES DEEMED RELIABLE ARE SUBJECT CHANGE WITHOUT NOTICE AND TO VERIFICATION BY BUYER: Robot Specifications: Axes:.............6 Payload:........25 kg Reach:.......1831 mm Repeatability:± 0.02 mm Robot Mass: 250 kg Structure: .....Articulated Mounting:.....Floor, Inverted, Angle Robot Motion Speed: J1...... 210°/s (3.4 rad/s) J2...... 210°/s (3.05 rad/s) J3...... 265°/s (3.14 rad/s) J4...... 420°/s (6.98 rad/s) J5...... 420°/s (6.98 rad/s) J6...... 700°/s (10.47 rad/s) Robot Motion Range: J1...... ±340° J2...... ±260° J3...... ±458° J4...... ±400° J5...... ±360 J6...... ±900 Robot Applications: Assembly Load/Transfer Dispensing Material Removal Material Handling Pick/Pack/Removal/Palletizing EQUIPPED WITH: FANUC MECHANICAL UNIT FANUC R-30iB PLUS CONTROL, A CABINET FANUC ROBOT CONNECTION CABLES FANUC ROBOT TEACH PENDANT PER THE OEM: Offering high performance in a small footprint, the FANUC M-20iD/25 is ideally suited to [loading and unloading machines](https://www.fanucamerica.com/solutions/applications/machine-tending-robots) as well as parts handling and positioning in crowded factory environments. For best access, it features a compact arm and wrist and, thanks to its new improved design and drive train, offers significantly higher axis speeds and motion performance. With an increased active stroke of 1831 mm, it offers a generous working envelope, with better rigidity translating to improved repeatability of ± 0.02 mm. To prevent snagging and improve reliability, cable routing is internal. By combining performance with reliability, the FANUC M-20iD/25 maximizes throughput leading to higher profitability. Installation is easy and running costs are low. Fanuc America Robotics are one of the premiere global robot brands. They build absolutely fantastic products and are by far the number one selling robot brand in the United States. If you allow us to re-register your software with Fanuc you will get 24-7 technical support from their expert staff. We will register the robot in your companies name, so when you reach out to Fanuc for support and provide them with your robots F number they will know who you are, and the robot your calling about.
